Releasing the brake caliper

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
During work on the rear brake, it must be ensured that the button for the electromechanical parking brake cannot be pressed.

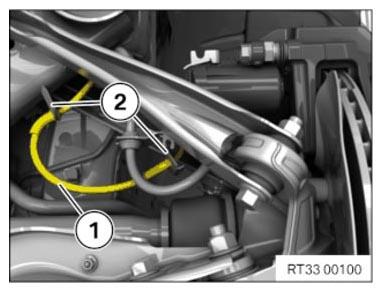

Release the cable for the parking brake (1) from the holders (2).
NOTE: Only perform the operation on the right side.
Release the cable for brake pad wear indicator from rear axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

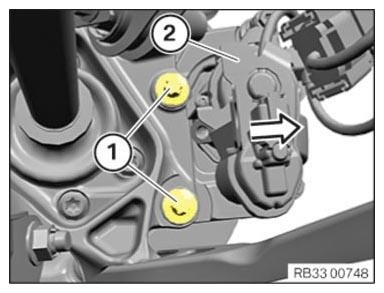

Loosen screws (1).
Pull brake caliper (2) down in direction of arrow.
The brake caliper must not hang on the brake hose.

Courtesy of BMW OF NORTH AMERICA, INC.

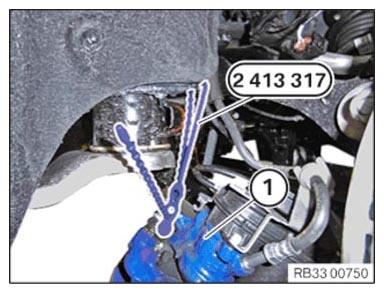

Tie the brake caliper (1) up with the special tool 2 413 317 .

Courtesy of BMW OF NORTH AMERICA, INC.
