Installing the oil deflector (engine installed)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
- Replace screws (marks).
Parts: Screws

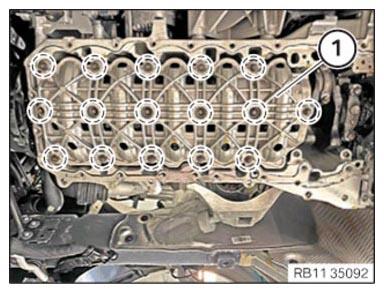

- Guide in and position the oil deflector (1).
- Tighten screws (marks) in crosswise sequence using the special tool 0 490 504 (00 9 120) .
TIGHTENING TORQUES SPECIFICATION
| Oil deflector to crankcase | ||
| M8 x 35 Replace screws. |
Joining torque | 15 Nm |
| Angle of rotation | 45° | |
