If installed: Installing the front radar sensor (FRS) with the bracket
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

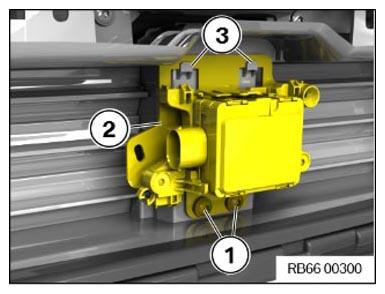

- Hook front radar sensor (FRS) with holder (2) in the lug (3).
- Position holder (2) at the mark made during removal.
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Front radar sensor (FRS) holder/(FRSF) to support Combination oval-head machine screw tightening torque 8 Nm - Clip in vehicle wiring harness with the holder (2).

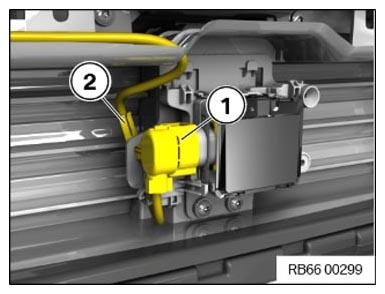

- Connect connectors (1) and lock.
Check

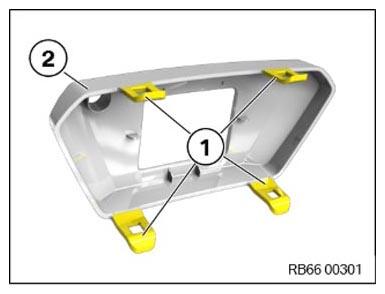

- Check lugs (1) on cover (2) for damage.
Result
» Tabs (2) are damaged.
Measure
- Replace cover.

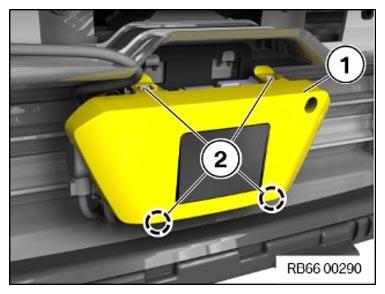

- Position cover (1) and clip into the detents (2).
Adjusting the front radar sensor (FRS)
NOTE:
TECHNICAL INFORMATION
Notes on the adjustment of the ACC sensor are a fundamental requirement for these repair instructions and must be complied with at all times.
For additional information see: INSTRUCTIONS FOR RADAR SENSOR ADJUSTMENT DEVICE .
Notes on the adjustment of the ACC sensor are a fundamental requirement for these repair instructions and must be complied with at all times.
For additional information see: INSTRUCTIONS FOR RADAR SENSOR ADJUSTMENT DEVICE .
NOTE:
TECHNICAL INFORMATION
If there is a "Sensor misadjusted" fault memory entry" and a correct sensor alignment using the adjustment screw is not possible, there is a suspicion of front impact damage.
In this case, the vehicle must be carefully inspected for damage. If necessary, damaged parts must be replaced. Then adjust the ACC sensor again.
A damaged/bent holder indicates a mechanical misuse of the vehicle and will not be considered to be a warranty case.
If there is a "Sensor misadjusted" fault memory entry" and a correct sensor alignment using the adjustment screw is not possible, there is a suspicion of front impact damage.
In this case, the vehicle must be carefully inspected for damage. If necessary, damaged parts must be replaced. Then adjust the ACC sensor again.
A damaged/bent holder indicates a mechanical misuse of the vehicle and will not be considered to be a warranty case.
Checking the vehicle and components for damage
Check
- In the visible areas, precise visual inspection of:
- damage
- deformation
Result
» Damage or deformation.
Measure
- Identify damaged, deformed vehicle parts and replace.
Result
» No damage or deformation
Measure
- Adjust front radar sensor (FRS).

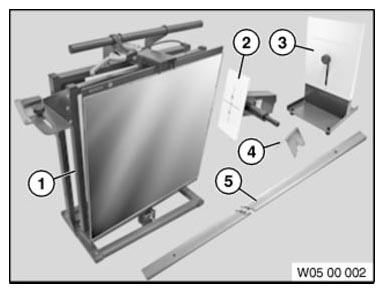

- Stage special tools 0 442 898 and 2 338 466 .
- Set up the special tool as per provided operating instructions.
- Connect diagnostic system.
- Service functions
- Driver assistance
- Front radar sensor (FRS)
- Commissioning the front radar sensor (FRS)

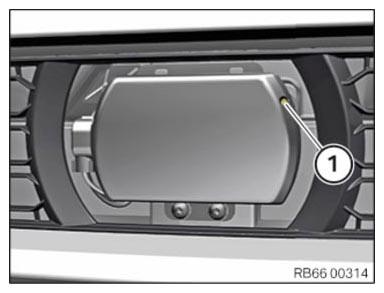

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - To adjust the front radar sensor (FRS), twist screw (1) using the standard tool.

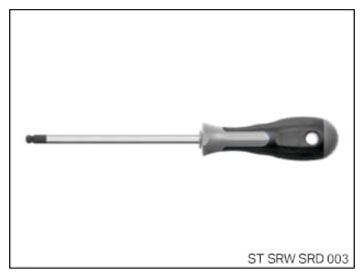

Standard tools:
Screwdriver for hexagon socket SW3
Screwdriver for hexagon socket SW3
Screwdriver for hexagon socket SW3 (Shaft length> 90mm)
