Checking/replacing the oil level in the rear axle gearbox (M Sport differential)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Contact with hazardous substances.
Health impairment.
Health impairment.
- Note and comply with the Safety Instructions on the containers and the instructions on the manufacturer's safety data sheet.
- Conduct all work in appropriate personal protective equipment only.
CAUTION:
Acid combustions may result from skin contact with oil or inhaling oil vapors.
Risk of acid burns from contact with oil!
Risk of acid burns from contact with oil!
- Wear safety goggles and hand protection.
- Ensure sufficient ventilation.
NOTE:
RISK OF DAMAGE
Damage to rear axle differential.
Failure to comply with the oil specifications can result in serious damage to the rear axle differential.
Damage to rear axle differential.
Failure to comply with the oil specifications can result in serious damage to the rear axle differential.
- Only use approved oil in the rear axle differential.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
NOTE:
TECHNICAL INFORMATION
It is imperative to ensure that there is no air in the hose when topping up a defined (measured) oil quantity.
It is imperative to ensure that there is no air in the hose when topping up a defined (measured) oil quantity.

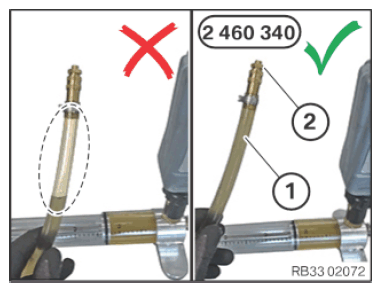

- Special tool 2 460 340 use for filling.
- When filling a defined (measured) quantity of oil, first fill the hose (1) with oil. To do this, attach an adapter (2).
Supplement the rear differential fluid change/oil level with oil gun
NOTE: TECHNICAL INFORMATION
The training video provides a schematic view of the method for changing the rear axle differential oil using the oil spray nozzle special tool.
The training video does not replace the repair instructions.
The training video is not subject to the update service.
We can assume no liability for printing errors or inaccuracies in this service information and reserve the right to introduce technical modifications at any time.Refer to:
multimedia:A supplement to the article is available. - Follow repair instructions!

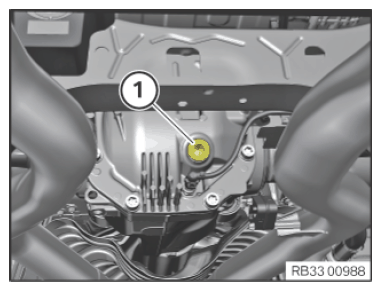

- Loosen the screw plug (1).
- Check the oil level. The oil level in the rear axle gearbox is set correctly if some oil escapes at the opening of the screw plug.
- Top up with rear axle gear oil if necessary.
Full-size rear axle transmission oil with rear axle transmission lock Shake (mix) before use. 215LWS 1.0 l 225ALS 1.0 l 225M 1.0 l 235M 1.4 l - Replace the screw plug (1).
Parts: Screw Plug
- Screw in the screw plug (1) a few turns by hand and tighten.
Screw plug on the rear axle differential M22 Replace screw plug with O-ring. tightening torque 60 Nm
