Version A: Draining and topping up the front axle transmission oil
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Filling to the lower edge of the oil filler opening means that the front axle differential is overfilled. In some cases, this may lead to emerging oil from the ventilation opening on the front axle differential.
After having drained the front axle transmission oil, repair the front axle differential or upon initial filling of a new replacement front axle differential, the transmission must be filled with 450 ml of oil.
Filling to the lower edge of the oil filler opening means that the front axle differential is overfilled. In some cases, this may lead to emerging oil from the ventilation opening on the front axle differential.
After having drained the front axle transmission oil, repair the front axle differential or upon initial filling of a new replacement front axle differential, the transmission must be filled with 450 ml of oil.
- Place oil collecting apparatus underneath.

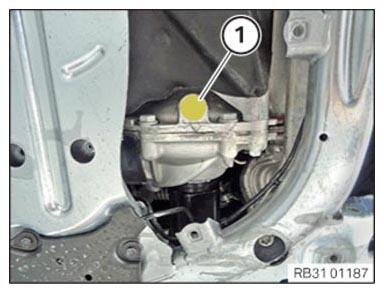

- Release oil drain plug (1).
- Drain and dispose of front differential oil.
- Replace (1) screw plug.
Parts: Plug
- Tighten oil drain plug (1).TIGHTENING TORQUES SPECIFICATION
Screw plug to front axle transmission M22

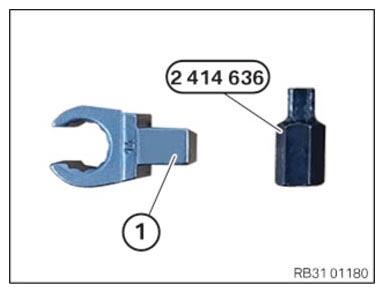

Replace screw plug with O-ring.Tightening torque 60 Nm - Use special tool 2 414 636
with special tool (1) to release and tighten the oil drain plug.

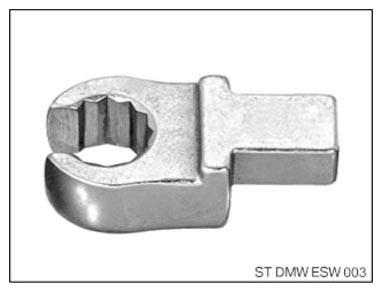

Standard tool: Open-ring insertion tool
Open-ring insertion tool
Open-ring insertion tool
SW14

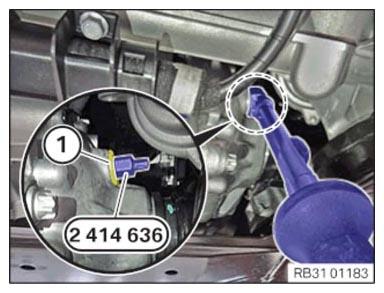

- Release oil drain plug (1) with special tool 2 414 636.

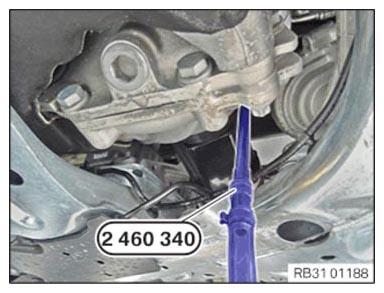

- Fill the front axle transmission oil with the special tool 2 460 340
into the front axle transmission.TECHNICAL DATA SPECIFICATION
Front axle transmission oil Front axle transmission capacity 450 ml - Replace (1) screw plug.
Parts: Plug
- Tighten the oil drain plug (1) with the special tool 2 414 636. TIGHTENING TORQUES SPECIFICATION
Screw plug to front axle transmission M22
Replace screw plug with O-ring.Tightening torque 60 Nm
