Replacing the radial shaft seal of the bearing bracket
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Radial shaft seal ring are equipped with an installation protection ring. The installation protection ring is used to protect the sealing lip when installing the output shaft.
Radial shaft seal ring are equipped with an installation protection ring. The installation protection ring is used to protect the sealing lip when installing the output shaft.
NOTE:
The illustration shows the procedure on the front axle differential. The procedure on the bearing bracket is identical.
Remove the radial shaft seal
- Prepare the special tool 0 490 466 (00 5 010)
with the special tools 0 494 649 (21 2 230)
(without the screw) and 0 493 384 (11 1 212).

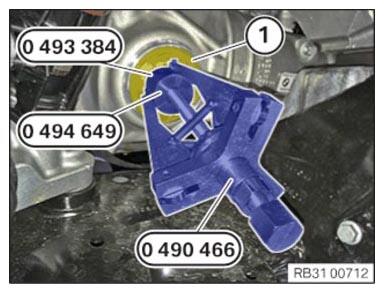

- Pull out and remove the radial shaft seal (1) with the special tools 0 490 466 (00 5 010), 0 494 649 (21 2 230
) and 0 493 384 (11 1 212).

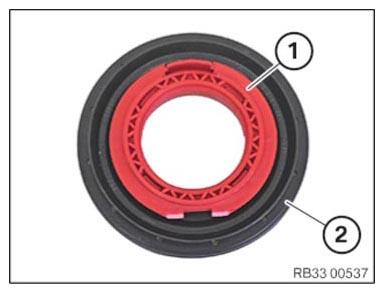

- Remove the assembly protection ring (1) from the radial shaft sealing ring (2).
- Replace radial shaft seal (2).
Parts: Radial shaft seal
- Reinstall installation protection ring (1) in radial shaft seal (2).
Install the radial shaft seal
- Coat the housing of the sheet metal flange of the radial shaft seal with the approved front differential fluid.

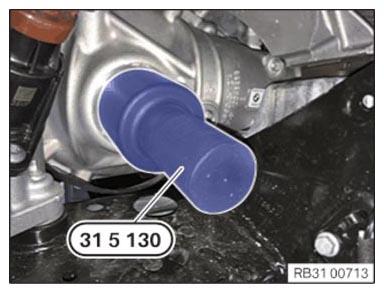

- Drive in the radial shaft seal to the stop using special tool 0 493 539 (31 5 130).
- Remove the special tool 0 493 539 (31 5 130).
