Releasing the rear left and right shock absorber from the body
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the right and left side.
Releasing the rear shock absorber from the body
NOTE:
The following step(s) must be performed if the specified component(s) is/are installed.

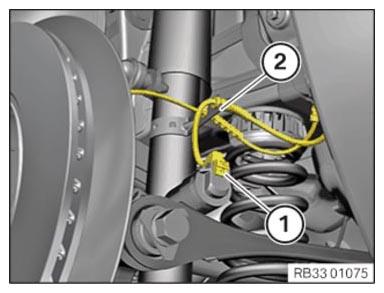

- Release all the cables from holder (2).
- Unlock plug connection (1) and disconnect.WARNING: Car may slip off the vehicle hoist where components are supported.
Danger! Immobilization period-threatening injuries!- Secure the vehicle hoist against lowering and lifting.
- Make sure that the vehicle does not lift off the mounting plates on the vehicle lift.

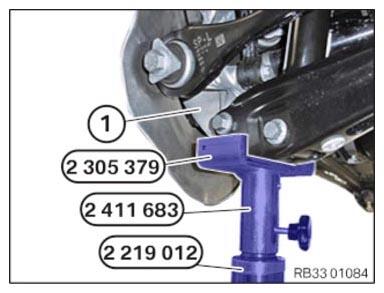

- Position special tool 2 219 012 with special tools 2 411 683 and 2 305 379 under wheel carrier (1).
- Support wheel carrier (1) using special tool 2 219 012
.
Do not press against the spring force of the coil spring.
- Loosen screws (1).
- Disconnect the special tool 2 219 012
and set it aside.
