Positioning the special tool on the rear axle support
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
In a profile rail pair, two profile rails are connected to one another by gearing.
In a profile rail pair, two profile rails are connected to one another by gearing.
NOTE:
TECHNICAL INFORMATION

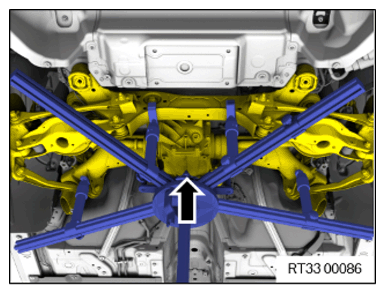

The center of gravity of the axle support must be in the center above the special tool.
The center of gravity of the axle support must be in the center above the special tool.
- Align special tools to rear axle support.
- Raise special tool 2 219 012 and support the rear axle support.
- Use a luggage strap to secure the rear axle support to the special tool.
