Opening locking ring (vehicle without stationary heating system)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Working on fuel system.
Risk of fire! Danger of explosion!

When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
No fire, sparks, open flames or smoking.

WARNING: Contact with hazardous fluids.
Hazardous to health!

Note and follow safety instructions on containers.
Conduct all work in appropriate personal protective equipment only.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

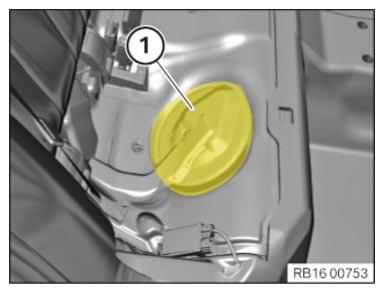

Unfold the insulation in the area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

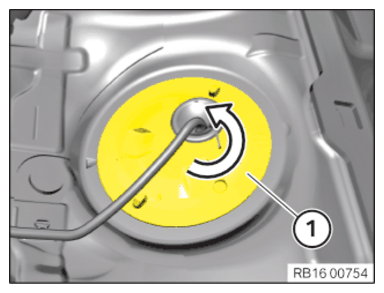

Open sealing cap (1) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

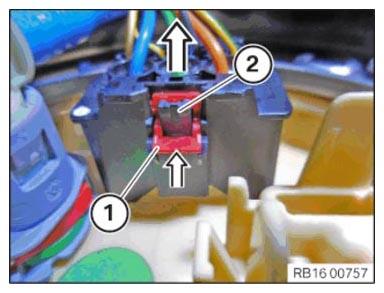

Unlock the locking tab (1) in arrow direction.
Press retaining tab (2) in the arrow direction and disconnect the plug connection in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following step(s) must be performed if the specified component(s) is/are installed.

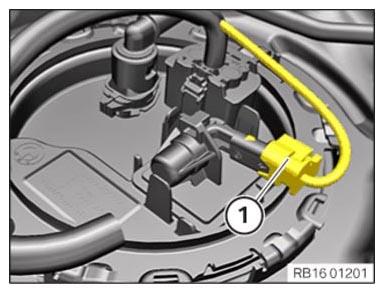

Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect snap fastener (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Place special tool 2 452 189 or 2 445 958 (1) on the locking ring (2).
Connect the special tool 0 495 554 (33 5 070) with a reversible 1/2 inch (3) ratchet head and place on the special tool 2 452 189 2 445 958.
Release locking ring (2) in counterclockwise direction.

Courtesy of BMW OF NORTH AMERICA, INC.
