Installing the special tool on the cylinder head

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

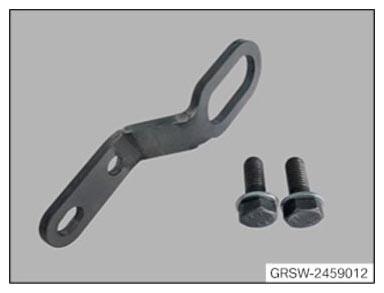

Prepare special tool 2 459 012.

Courtesy of BMW OF NORTH AMERICA, INC.

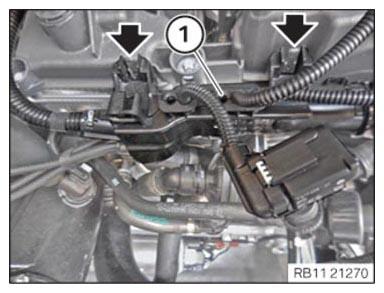

Unlock the locks (arrows).
Feed out the wiring harness section (1) for sensor system 2 and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

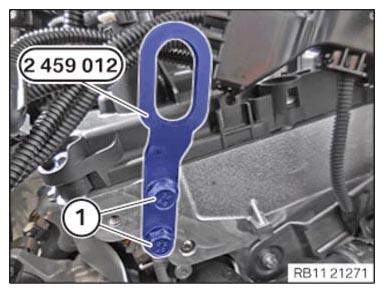

Thread in special tool 2 459 012 and position.

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Special tool to cylinder head
M8	Tightening torque	21.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
