Installing the engine on the assembly jig
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Heavy component.
Heavy components can lead to injury or damage.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.
- Get the set of special tools 0 495 187 (00 2 300)
ready.

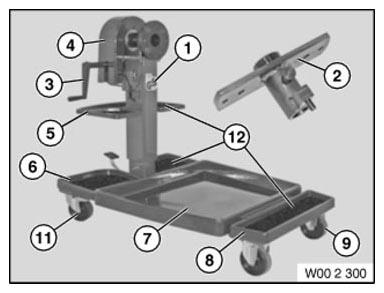

Number Description 1 Assembly jig 2 Flange 3 Crank 4 cover panel 5 shelf 6 Rear shaped part 7 Collection pan 8 Front shaped part 9 Front wheel 10 Rear wheel with stop 11 Mat - Have the special tool 2 411 718
ready.

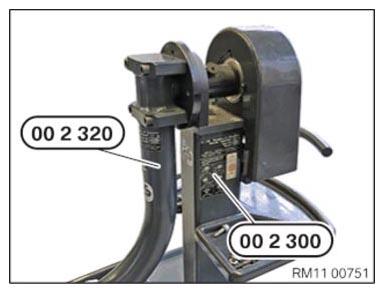

- Position the assembly jig 0 495 187 (00 2 300)
with the special tool 0 495 196 (00 2 320).

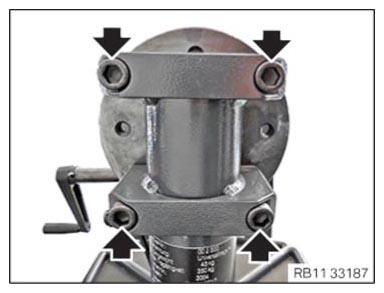

- Tighten the screws (arrows).TIGHTENING TORQUES SPECIFICATION
Special tool 00 2 320 to special tool 00 2 300 M14X95 Tightening torque 130 Nm - Screw the special tool 2 413 082 to the 0 495 196 (00 2 320) special tool.

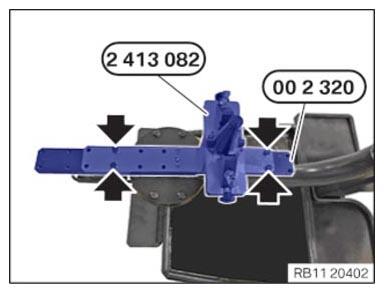

- Tighten the screws (arrows).TIGHTENING TORQUES SPECIFICATION

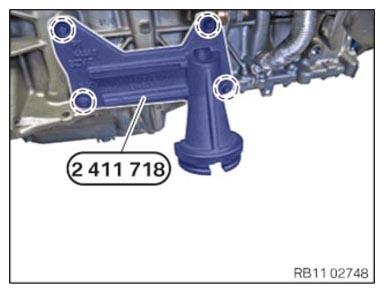

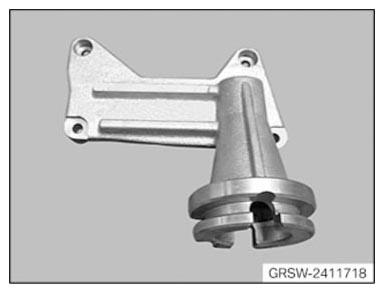

Special tool 2 413 082 to special tool 00 2 320 M 12x65 Tightening torque 100 Nm - Position and secure the special tool (motor mount) 2 411 718 on the engine.
- Tighten the screws (marks).TIGHTENING TORQUES SPECIFICATION

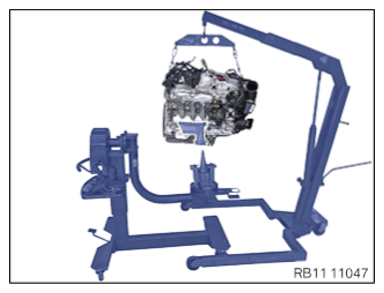

Special tool 2 411 718 to crankcase M 10x30 tightening torque 38 Nm - Slowly lower the engine.

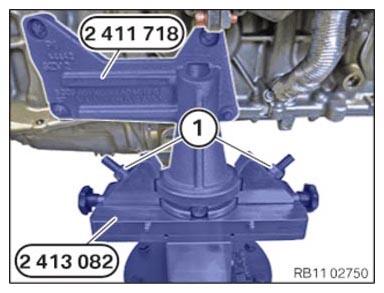

- Ensure that special tool 2 411 718 engages in special tool 2 413 082.
- Hand-tighten nuts (1).
The clamping jaws must make full contact.

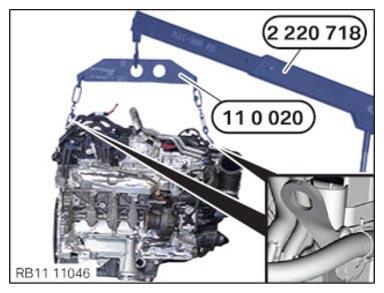

- Release both hooks of the special tool (lifting equipment) 0 490 567 (11 0 020) at the front and rear of the engine from the mounting brackets.
- Remove the workshop crane 2 220 718.
