Installing rear exhaust system
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Component with heavyweight.
Injury hazard!
Injury hazard!
- Note component's center of gravity.
- Support component using a jack.
- Secure component against falling off the jack.
CAUTION:
Heavy component.
Heavy components can lead to injury or damage.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.

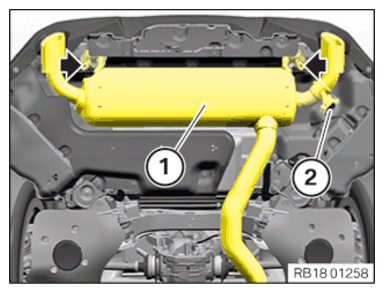

- Guide in and install exhaust system (1).
- Replace nuts (arrows).
Parts: Nuts
- Tighten the nuts (arrows).TIGHTENING TORQUES SPECIFICATION
Rear silencer to body/bumper support M8 Replace nuts. Tightening torque 19 Nm NOTE: The following step(s) must be performed if the specified component(s) is/are installed. - Connect connectors (2) and lock.
The connector (2) must engage audibly.

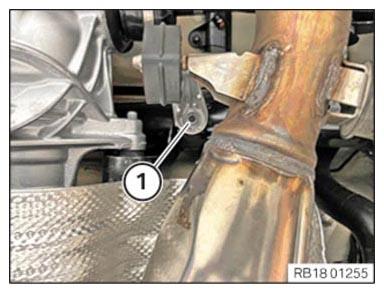

- Replace nut (1).
Parts: Nut
- Tighten nut (1) on the rear axle support.TIGHTENING TORQUES SPECIFICATION

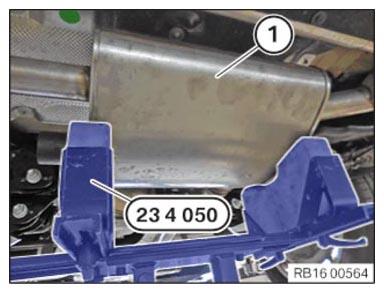

Exhaust system to rear axle carrier M8 Nut Replace nuts. Tightening torque 19 Nm - Remove the transmission jack and the special tool (mount) 0 495 498 (23 4 050)
from the rear silencer (1).

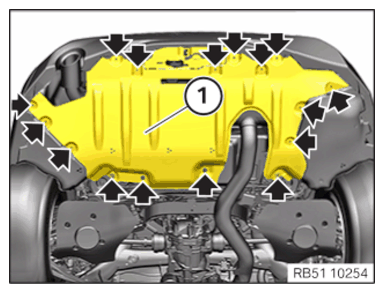

- Thread in the rear diffuser (1) and position.
- Tighten nuts and bolts (arrows).TIGHTENING TORQUES SPECIFICATION
Undershield Screw Tightening torque 2.6 Nm Plastic nut Tightening torque 2.6 Nm
