Install the telematics control module
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

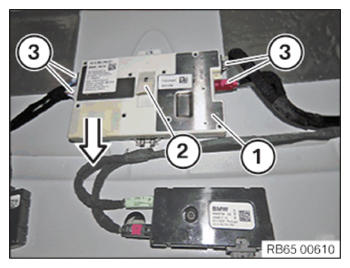

- Correctly position the telematics control module (1) and slide it in the direction of the arrow until the lock (2) engages.
- Position and connect the connectors (3) .
Follow-up work
- Refer to PARTIALLY INSTALLING THE REAR (LOWERED) HEADLINING (WITH SLIDING/TILTING SUNROOF) .
- Refer to INSTALLING THE LEFT AND RIGHT B-PILLAR TRIM PANEL .
- Refer to PARTIALLY INSTALLING THE REAR LEFT AND RIGHT SIDE TRIM PANEL .
- Refer to INSTALLING THE LEFT AND RIGHT C-PILLAR TRIM PANEL .
- Refer to INSTALLING INTERIOR ROOF LIGHT .
- Refer to TRIM OF THE 3RD INSTALLING THE BRAKE LIGHT .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
