Installing the left and right C-pillar trim panel

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing C-pillar trim panel

WARNING: Pyrotechnic components.
Danger! Immobilization period-threatening injuries!

All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
Replace any damaged part or ones that have been dropped.
For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

NOTE: RISK OF DAMAGE
Damage to the head airbag.
Improper use of a tool when removing the trim panel may damage the head airbag.

Do not use sharp-edged tools when removing the trim panel.

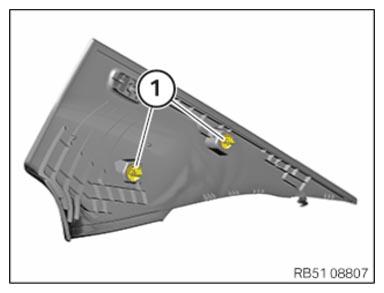

Check the clips (1) for damage and replace where required.

Courtesy of BMW OF NORTH AMERICA, INC.

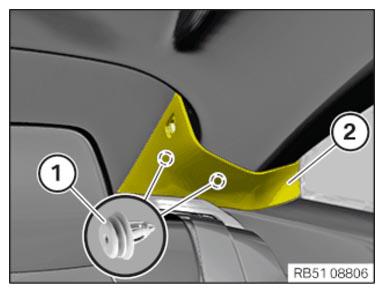

Position the C-pillar trim panel (2) and clip in at the clips (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

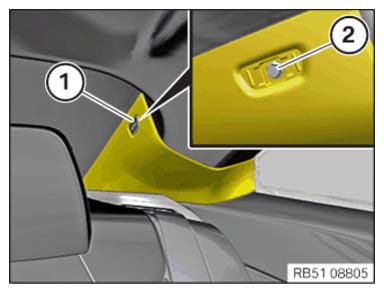

Tighten down screw (2) .

TIGHTENING TORQUE SPECIFICATIONS

C-pillar trim panel to body
Screw	tightening torque	2.6 Nm

Clip in the cover (1) of the C-pillar trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.
