Removing mid-range speaker at the rear of the side trim panel
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE REAR OUTER WINDOW RECESS FINISHER STRIP .
- Refer to REMOVING THE INNER DOOR SILL COVER STRIP .
- Refer to REMOVING REAR SEAT BENCH .
- Refer to REMOVING LEFT AND RIGHT BACKREST SIDE SECTION .
- Refer to REMOVING REAR SEAT BACKREST .
- Refer to REMOVING THE HEAD RESTRAINT ON REAR LEFT AND RIGHT .
- Refer to REMOVING THE REAR LEFT AND RIGHT HEAD RESTRAINT GUIDES .
- Refer to REMOVING THE TRIM PANEL AT THE TOP OF THE ROLLOVER PROTECTION SYSTEM .
- Refer to REMOVING REAR SIDE TRIM PANEL .
- Refer to REMOVING THE SOUND INSULATION ON THE SIDE TRIM PANEL .
NOTE:

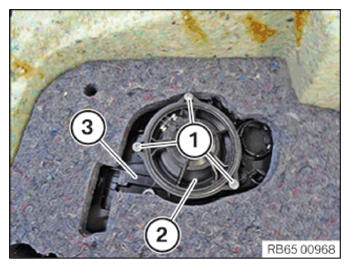

Schematic diagram is for example purposes. Some parts may differ in certain details.
- If necessary, slide the acoustic fleece to one side.
- Loosen screws (1).
- Remove the mid-range speaker (2) from the side trim panel (3).
