Remove rear seat backrest

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

Protect working area.
Handle tools and components carefully.

When removing the rear seat backrest (1) , make sure that the backrest cover is not damaged by the floor panel (2) in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.

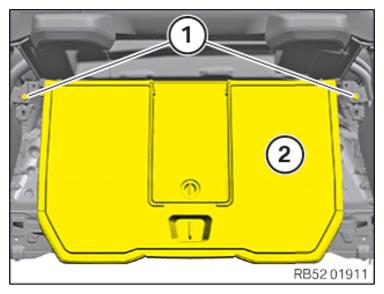

Release the screws (1) and remove the rear seat backrest (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

Protect working area.
Handle tools and components carefully.

When installing rear seat backrest (1) , ensure that the backrest covering in the marked area is not damaged by floor panel (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Position rear seat backrest (2) .

Tighten the screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Outer bearing of the rear seat backrest to body
Oval-head screw	Tightening torque	42 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
