Installing mid-range speaker at the rear of the side trim panel

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

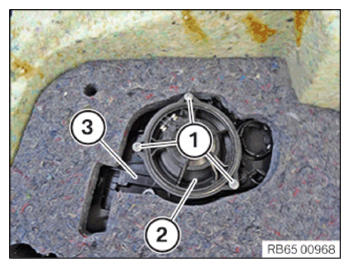

Insert the mid-range speaker (2) into the side panel (3) and position it correctly.
Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Loudspeaker on the door/trim panel
Screw	tightening torque	2 Nm

If necessary, position the acoustic fleece correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING SOUND INSULATION ON THE SIDE TRIM PANEL .
Refer to INSTALLING REAR TRIM PANEL .
Refer to INSTALLING THE UPPER TRIM PANEL ON ROLLOVER PROTECTION SYSTEM .
Refer to INSTALLING THE REAR LEFT AND RIGHT HEAD RESTRAINT GUIDES .
Refer to INSTALLING REAR LEFT AND RIGHT HEAD RESTRAINTS .
Refer to REMOVING REAR SEAT BACKREST .
Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
Refer to INSTALLING THE REAR SEAT .
Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
Refer to ATTACHING THE REAR OUTER WINDOW RECESS FINISHER STRIP .
