Remove the tail light on the right side panel
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to PARTIALLY REMOVING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON LEFT .
- Refer to REMOVING TRIM FROM THE WATER CHANNEL .
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the tail light on the side panel
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Loosen nut (1).

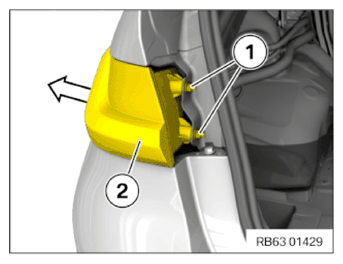

- Release nuts (1) and feed out the tail light on the side panel (2) in arrow direction.NOTE: TECHNICAL INFORMATION
Observe the note on unlocking and disconnecting plug connections.

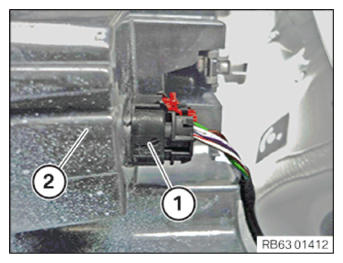

For additional information see: 6113... UNLOCKING AND DISCONNECTING DIFFERENT PLUG CONNECTIONS . - Unlock plug connection (1) and disconnect.
- Remove the tail light on the side panel (2).
