Unlocking and disconnecting different plug connections (M4 2021-2023)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The document describes unlocking and disconnecting different types of plug connections.
Differences in the details of the size and shape of the plug connections are possible.

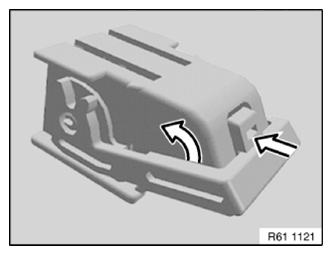

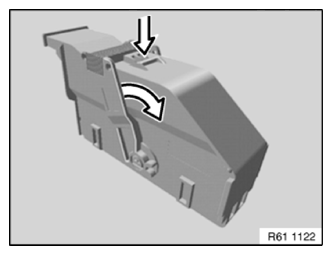

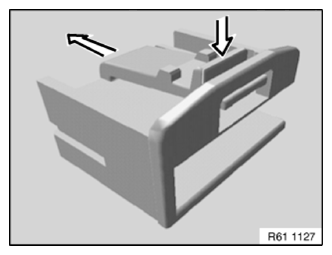

Press locking mechanism and open release fixture in arrow direction.
Disconnect plug connection.

Courtesy of BMW OF NORTH AMERICA, INC.

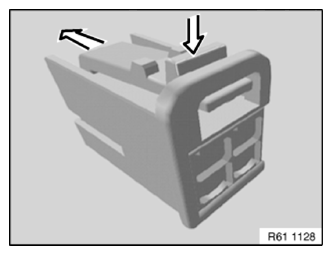

Press locking mechanism and open release fixture in arrow direction.
Disconnect plug connection.

Courtesy of BMW OF NORTH AMERICA, INC.

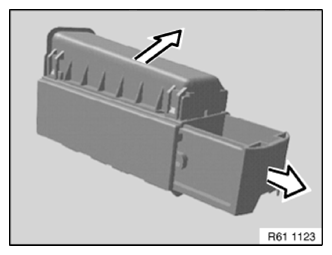

Open release fixture in arrow direction and disconnect plug connection in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

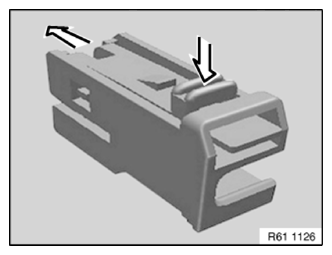

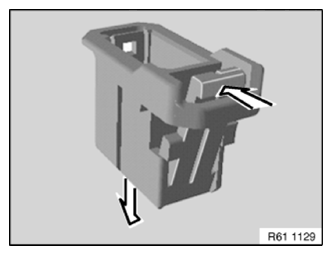

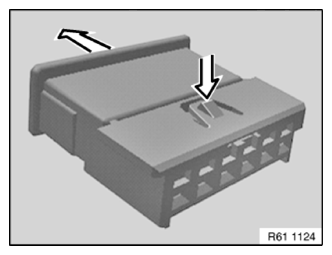

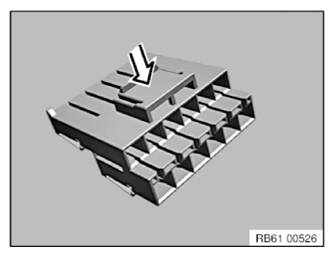

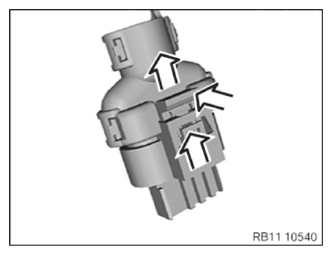

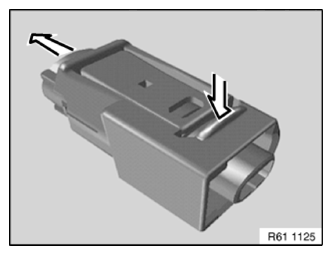

Press locking mechanism and disconnect plug connection in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

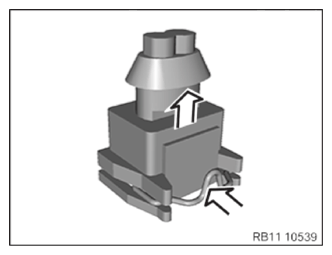

Press locking mechanism and disconnect plug connection in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

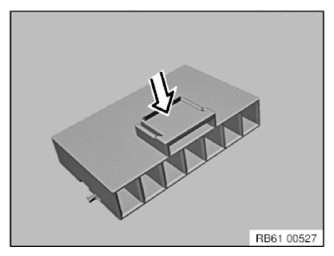

Press locking mechanism and disconnect plug connection in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

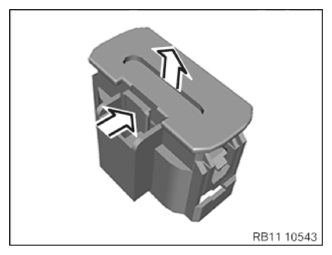

Press locking mechanism and disconnect plug connection in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Press locking mechanism and disconnect plug connection in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Press locking mechanism and disconnect plug connection in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

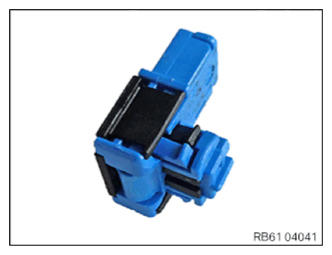

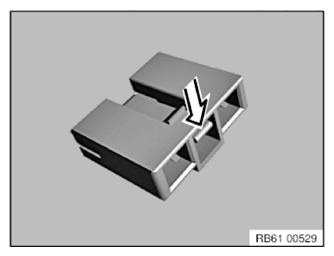

Press the lock and detach plug connection.

Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock and detach plug connection.

Courtesy of BMW OF NORTH AMERICA, INC.

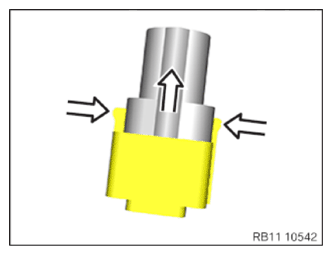

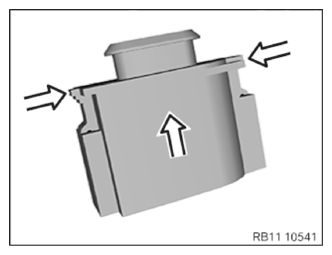

Press the lock on both sides and detach plug connection.

Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock and detach plug connection.

Courtesy of BMW OF NORTH AMERICA, INC.
Press locking mechanism and open release fixture in arrow direction.
Disconnect plug connection.

Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock and detach plug connection.

Courtesy of BMW OF NORTH AMERICA, INC.

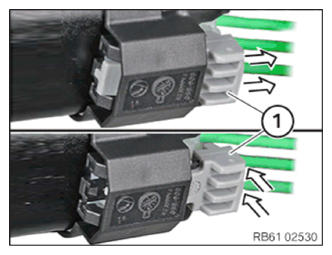

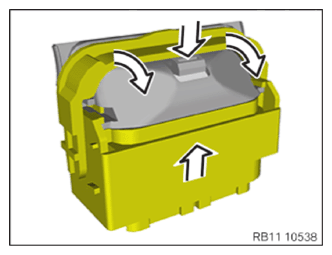

Pull out lock and press.
Disconnect plug connection.

Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock and detach plug connection.

Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock and detach plug connection.

Courtesy of BMW OF NORTH AMERICA, INC.
Press the lock and detach plug connection.

Courtesy of BMW OF NORTH AMERICA, INC.

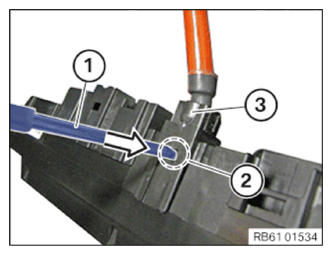

Plug connection, e.g. on the power distribution box:
Press into the opening (2) using a suitable tool (1).

Detach plug connection (3) upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

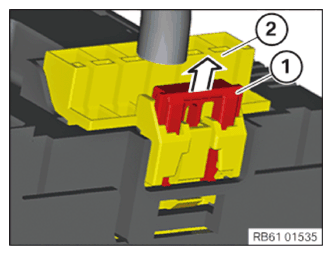

Plug connection, e.g. on the power distribution box:
Lift lock (1) with a suitable tool.

Detach plug connection (2) upwards.

Courtesy of BMW OF NORTH AMERICA, INC.
Vibration resistant high power engine contacts:
Attention!

For this connector type, increased forces come into play when disconnecting and closing.

Disconnect:

Courtesy of BMW OF NORTH AMERICA, INC.

First pull out locking mechanism (1) downward in arrow direction.

Then press locking mechanism (1) down in arrow direction and detach connector.

Courtesy of BMW OF NORTH AMERICA, INC.

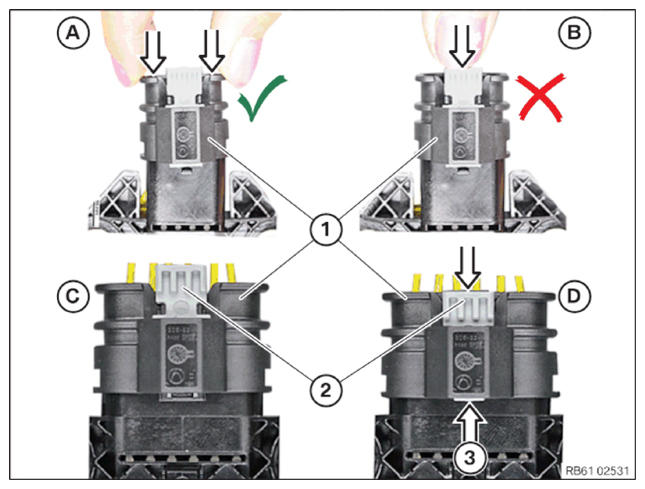

Closing:
1. Press connector (1) down to the end position at positions marked with the arrow.
2. Do not press connector (1) down through the lock .
3. Connector (1) is in the end position, lock (2) is not yet locked.
4. Press down locking mechanism (2) in the direction of arrow until the tip of the lock (2) at position (3) is visible.

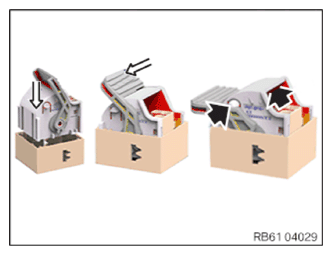

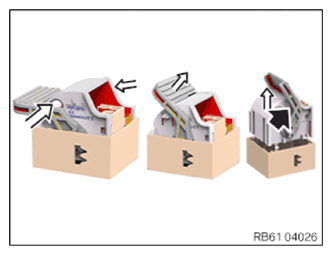

Unlocking/locking front light combination plug connection & housing exchange after damage:
Press in lever locking mechanism on both sides until lever is unlocked and can be moved.
Move lever upwards to detent in end position.

When lever is locked in end position, remove plug connection upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

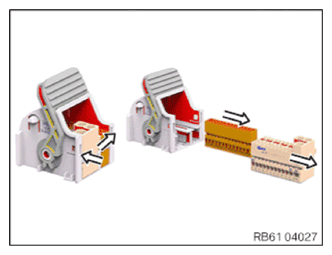

Unlock connector housing by raising respective locking tabs.

After unlocking, push connector housing out.

Courtesy of BMW OF NORTH AMERICA, INC.

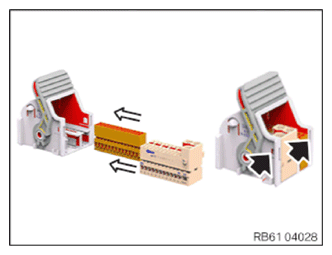

Push in connector housing to stop.

Lock connector housing in end position.

Courtesy of BMW OF NORTH AMERICA, INC.

Push in to stop.

Trigger insertion process by moving lever downwards.

IMPORTANT: Detent on both sides only with complete insertion process.

Courtesy of BMW OF NORTH AMERICA, INC.
Rosenberger D4S20G-400A5-Y

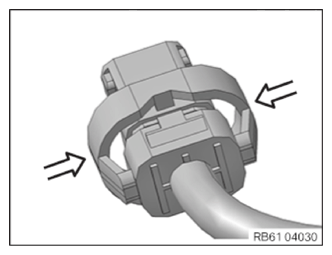

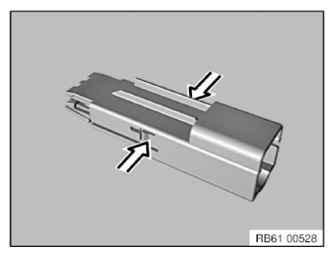

Unlocking by pressing on both sides.

Courtesy of BMW OF NORTH AMERICA, INC.

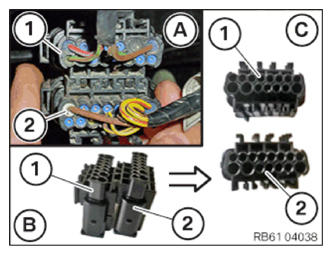

15-pin pin housing MLK1
1. To prevent damage to individual plugs, plug combination consisting of several individual plugs (1) & (2) must always be released before disconnecting plug connection.
2. Released plug combination
Courtesy of BMW OF NORTH AMERICA, INC.

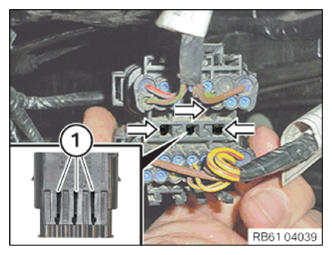

Disconnecting plug combination:

Unlock snap-in hooks (1) in arrow direction (detailed illustration shows individual plug snap-in hooks).

Courtesy of BMW OF NORTH AMERICA, INC.

Release plug (2) in arrow direction from plug (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Airbag ignition circuit connector
WARNING: Before disconnecting plug connection, note safety instructions for working on vehicles with airbag systems.

Courtesy of BMW OF NORTH AMERICA, INC.

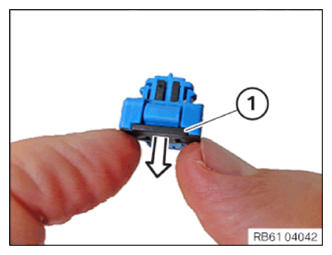

Unlocking by pulling cap (1) in arrow direction

Courtesy of BMW OF NORTH AMERICA, INC.
Connector e.g. to front and rear light cluster
Open the release lock (1) in the direction of the arrow using a suitable tool.

Press the release lever (2) in the direction of the arrow and disconnect the plug connection.

Courtesy of BMW OF NORTH AMERICA, INC.

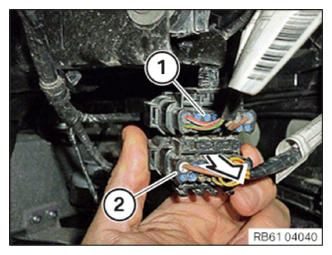

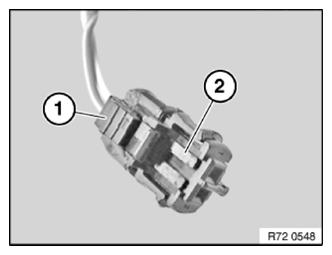

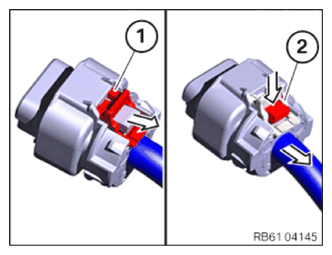

Connectors e.g. in airbag ignition circuits
Press the lock (1) and pull out the connector (2) up to initial engagement position.

Detach connector (2).

Courtesy of BMW OF NORTH AMERICA, INC.
