Removing the iDrive Controller
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT TRIM .
- Refer to REMOVING THE CENTER CONSOLE TRIM .
- Refer to REMOVING THE OPERATING FACILITY IN THE CENTER CONSOLE .

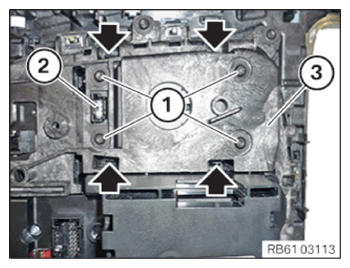

- Loosen screws (1).
- Release the latch mechanisms (arrows).
- Remove the iDrive Controller (2) from the control unit (3).
