Installing the iDrive Controller
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

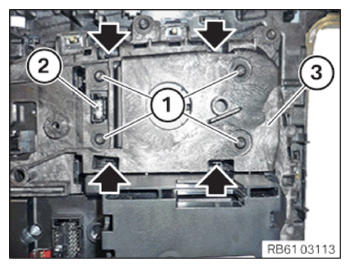

- Position the iDrive Controller (2) on the control unit (3) and snap-in at the detents (arrows).
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Controller to GWS |
| screw |
Tightening torque |
1.8 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Follow-up work
