Installing the HDC button/trim

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

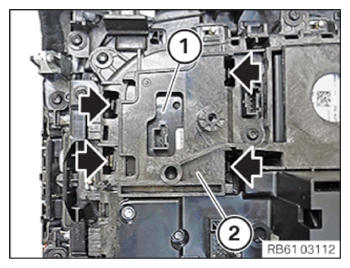

Position HDC button/trim (1) on control unit (2).

The detents (arrows) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE OPERATING FACILITY IN THE CENTER CONSOLE .
Refer to INSTALLING THE CENTER CONSOLE TRIM .
Refer to INSTALLING TRIM IN STORAGE COMPARTMENT OF CENTER ARMREST .
