Special tools for wiring harness repairs (M4 2021-2023)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 61 0 300
- 61 0 400
- 61 1 100
- 61 4 320
- 61 0 200
- 61 0 210
- 61 0 220
- 61 0 230
- 61 0 240

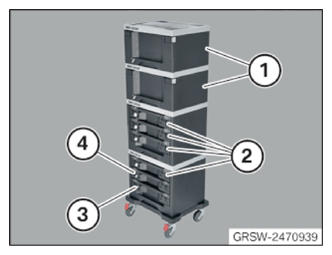

WIRING HARNESS REPAIR CASE 4.0 .
Repair product range, vehicle electrical system:

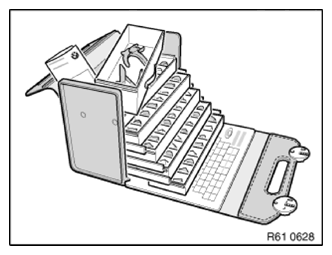

Single parts for wiring harness repairs*
* Sourcing reference: BMW Parts Department
Release and press-out tool:

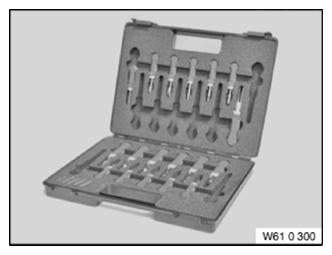

- Special tool 61 0 300
- Special tool 61 0 400 (MINI N12/N14)
- Special tool 61 1 100 (combustion engine)
Handling:
- Notes for opening contacts and locks of different connector contact systems
Cutting to length and strip off insulation from cables:

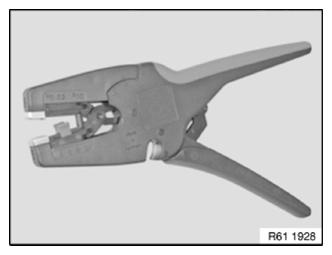

Wire stripper MultiStrip10*
*Sourcing reference APPLICABLE BMW applicable BMW Workshop Equipment CATALOGUE .
Handling:
- Cutting cables to length and stripping off insulation
Crimping stop parts (small contacts) and butt connectors:

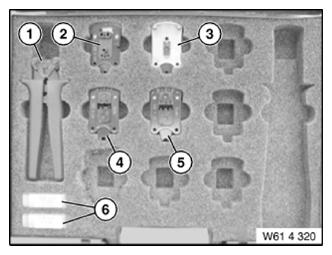

- Special tool 61 4 320
- Tool without crimping head
- Crimping head (STRIP OFF INSULATION AND CUTTING FIBER-OPTIC CABLES TO LENGTH) .
- Crimping head (crimping fiber-optic cable contacts)
- Crimping head (CRIMPING MQS CONTACTS) .
- Crimping head (CRIMPING MPQ CONTACTS) .
- Replacement blade (face-cutting fiber-optic cables)
- Replacement blade with tool (insulation stripping unit)
- Universal crimping head.
Crimping stop parts (large contacts) and butt connectors:

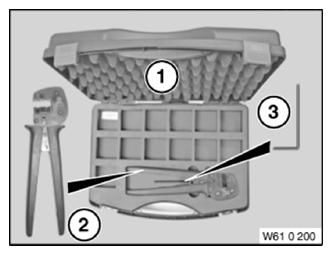

- Special tool 61 0 200 (crimping kit)
- Special tool 61 0 210 (matrix set SLK 8)
- Special tool 61 0 220 (matrix set SLK 2.8)
- Special tool 61 0 230(matrix set MAK 8/DFK4)
- Special tool 61 0 240 (butt connector 4.0 - 6.0 mm2 )
