Crimping Micro Quadlock System contacts (MQS) (M4 2021-2023)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 4 320

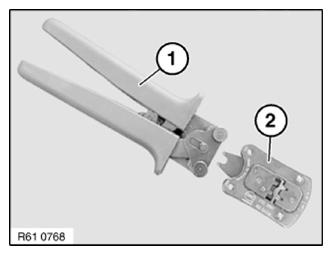

To crimp MPQ contacts, use hand pliers 61 4 321 (1) in conjunction with crimping head 61 4 324 (2) from crimping set 61 4 320.

NOTE: Hand pliers (1) open automatically until stop when handles are pressed together.

Courtesy of BMW OF NORTH AMERICA, INC.

Open hand pliers (1).

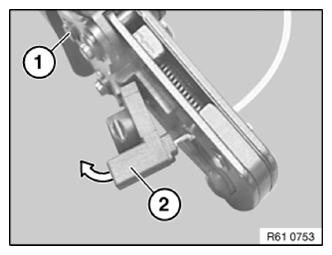

Fold up contact carrier (2).

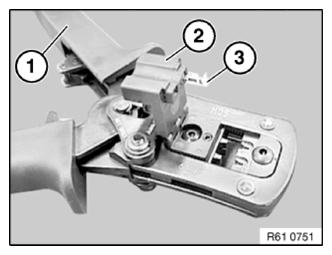

Insert MQS contact (3) in contact carrier (2).

Fold back contact carrier (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for cutting and stripping off insulation from cables.

Close hand pliers (1) one notch.

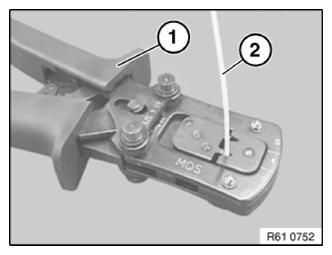

Insert stripped cable (2).

Close hand pliers (1) fully.

Courtesy of BMW OF NORTH AMERICA, INC.

Open hand pliers (1).

Open contact carrier (2) gently and carefully remove MQS contact.

IMPORTANT: Check contact for correct crimping.

Courtesy of BMW OF NORTH AMERICA, INC.
