Installing FRSF

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

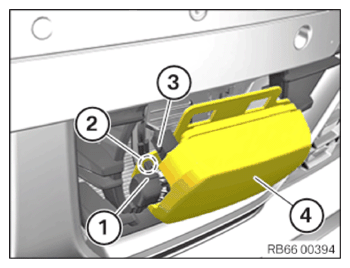

Position FRSF (4).
Connect connectors (3) and lock.
Clip in the cable clip (2).
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

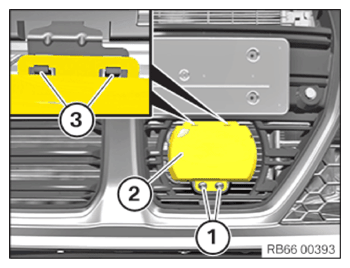

Feed the front radar sensor long range (FRSF) (2) into the grille of the bumper cover.
Guide in the front radar sensor long range (FRSF) (2) on the guides (3) and position it correctly.
Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Front radar sensor (FRS)/(FRSF) to bracket
Screw	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to ADJUSTING THE FRONT RADAR SENSOR (FRS) .
