Adjusting track

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

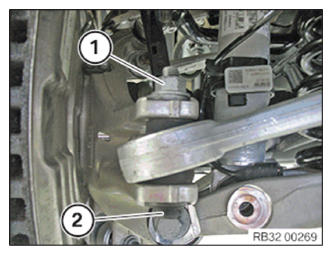

Loosen nut (1).
Remove the eccentric washer.
Remove the eccentric screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: In order to tighten the screw connection with the torque wrench after adjustment work, the direction of insertion of the eccentric screw must be reversed.

Renew the eccentric screw (2), eccentric washer and nut (1).
Parts: Eccentric screw, eccentric washer, nut
Install eccentric screw (2) from above.
Position the eccentric screw (2) and tighten nut (1) to 5 Nm.
Twist the eccentric screw (2) to adjust the toe to the setpoint value.
Tighten nut (1).

NOTE: Counter-hold at screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Lower rear wishbone to wheel carrier
M12 Replace eccentric screw, eccentric washer and nut.	Tightening torque	100 Nm

Follow-up work

Refer to ADJUSTING THE FRONT RADAR SENSOR (FRS) .
