Remove lumbar support on front seat
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING DRIVER'S SEAT .
- Refer to FOR CONTINUING WORK ON THE FRONT SEAT: MOUNT THE FRONT SEAT ON THE UNIVERSAL SEAT MOUNT AND CONNECT WITH THE WIRING HARNESS IF NECESSARY .
- Refer to REMOVING THE REAR PANEL ON THE FRONT SEAT BACKREST .
- Refer to REMOVING THE HEAD RESTRAINT .
- Refer to REMOVING OUTER COVER ON FRONT SEAT .
- Refer to REMOVING INNER COVER FROM THE FRONT SEAT .
- Refer to REMOVING THE BACKREST COVER WITH THE CUSHION .
- Refer to REMOVING THE DRIVE MOTOR FOR THE HEADREST HEIGHT ADJUSTER .
Precondition
The lumbar support and backrest adjustment are completely pressure-free.
NOTE:
Perform the steps on the right and left side.

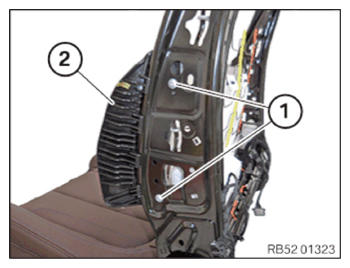

- Release the screws (1) and guide out the air cushion of the left/right backrest adjustment.

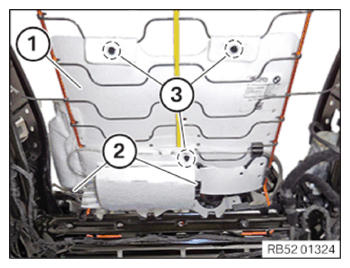

- Disconnect the plug connections (2) and unclip the existing cable clip.
- Unclip the lumbar support (1) at the clips (3) and guide out the retaining tabs.

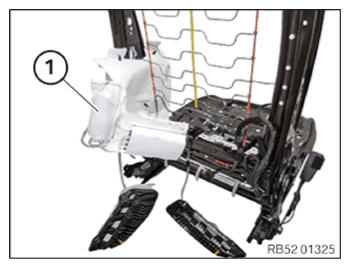

- Carefully guide out the lumbar support (1) to the side, complete with the pump unit and valve manifold.
