Installing the support for the front seat (CSL)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

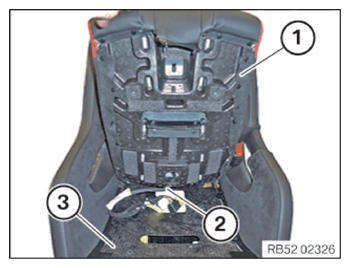

Position the support for front seat (1) as shown.
Guide wiring harness (2) correctly into seat pan (3).

Courtesy of BMW OF NORTH AMERICA, INC.

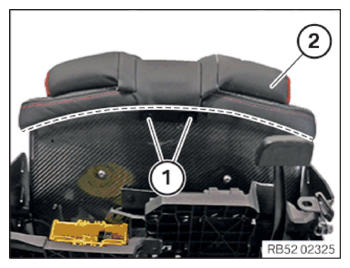

Position seat cover (2) correctly in the marked area.
Clip in the attachment points (1).

Courtesy of BMW OF NORTH AMERICA, INC.

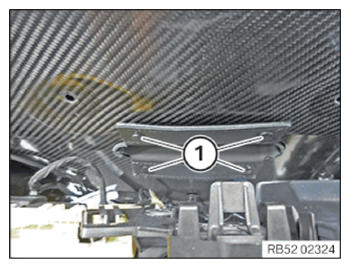

Clip in the attachment points (1).

Courtesy of BMW OF NORTH AMERICA, INC.

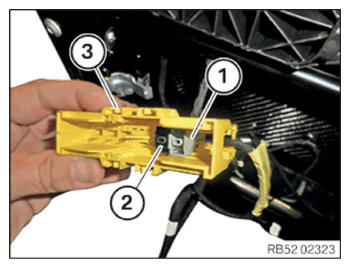

Install pin of connector (2) (black) and connector (1) (gray) in control unit connector (3).

Courtesy of BMW OF NORTH AMERICA, INC.

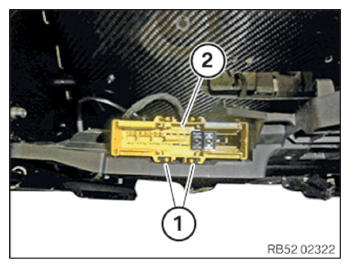

Clip in control unit connector (2).
Retaining lugs (1) and (2) must snap in audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

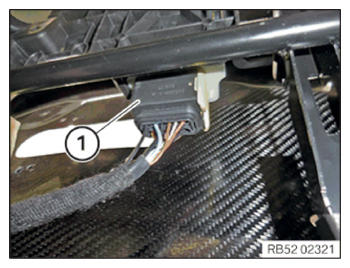

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to AFTER CONTINUING WORK ON THE FRONT SEAT: DISCONNECTING THE FRONT SEAT FROM THE WIRING HARNESS OF THE VEHICLE AND REMOVING IT FROM THE UNIVERSAL SEAT MOUNT .
Refer to INSTALLING DRIVER'S SEAT .
Refer to INSTALLING THE STRAP FITTING .
