Installing the strap fitting
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
NOTE:
TECHNICAL INFORMATION
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength.
The screw connection must be completed within 10 minutes as hardening begins after this period.
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength.
The screw connection must be completed within 10 minutes as hardening begins after this period.

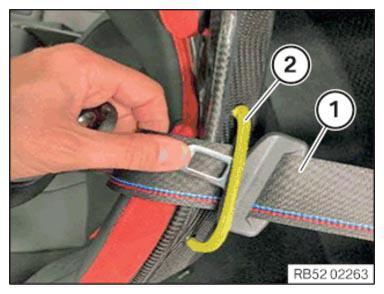

- Insert the seat belt (1) from the yellow marked belt loop (2).

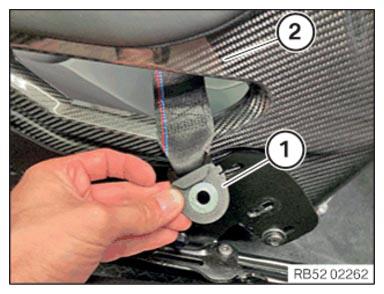

- Carefully insert the seat belt end fitting (1) through the CFRP bucket seat (2).NOTE: TECHNICAL INFORMATION
Component is encoded against incorrect

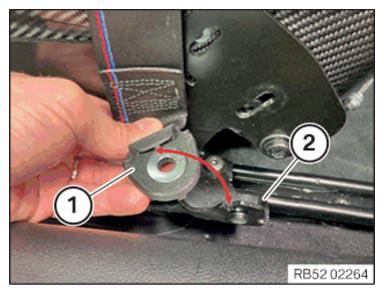

assembly - Position the seat belt end fitting (1) correctly on the seat mechanism (2).
Make sure that the seat belt is not twisted.
- Check that the seat belt end fitting is positioned correctly.

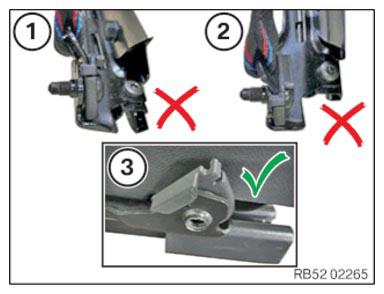

- Illustrations (1) and (2) are not OK.
- Illustration
(3) is OK.

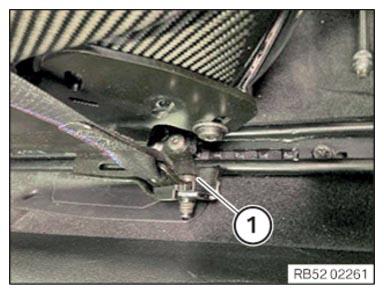

- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
End lining to body M10
Replace screw.Tightening torque 42 Nm
