Installing the servomotor for the eccentric shaft

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .

Route all cables without abrasions, do not trap and crush.

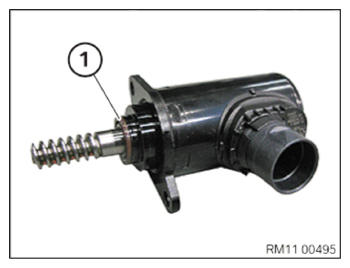

Replace gasket (1).
Parts: Seal

Courtesy of BMW OF NORTH AMERICA, INC.

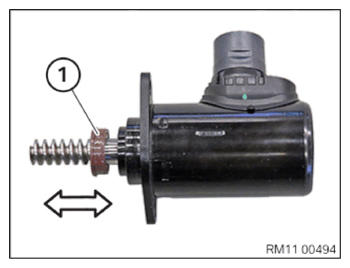

Press the seal (1) up to the limit position on the housing.

Courtesy of BMW OF NORTH AMERICA, INC.

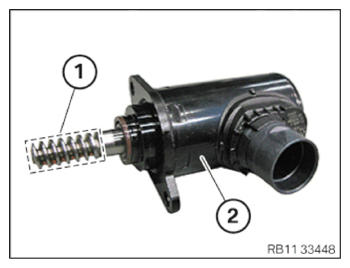

Grease the gearing (1) of the servomotor for the eccentric shaft (2) in the marked area.
Parts: lubric. grease
CONSUMABLE DESCRIPTION

Lubricating grease Longtime PD-1 400 g, Cartridge 83192160340

Courtesy of BMW OF NORTH AMERICA, INC.

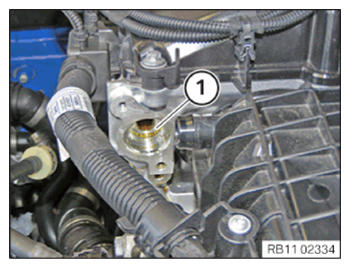

Clean sealing surface (1).

Courtesy of BMW OF NORTH AMERICA, INC.

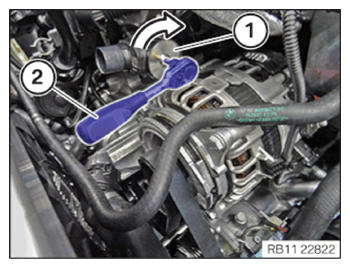

Insert the servomotor (1) to the gearing on the cylinder head.
Turn the drive shaft of the servomotor (1) using a conventional tool (2) in the arrow direction until the servomotor (1) is flush with the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

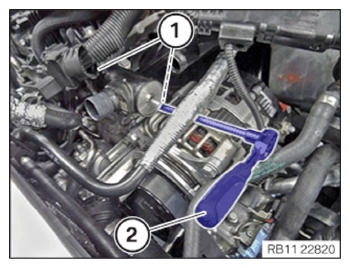

Tighten screws (1) using standard tools (2).

TIGHTENING TORQUE SPECIFICATIONS

Servomotor for the eccentric shaft to cylinder head
M6 x 16	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

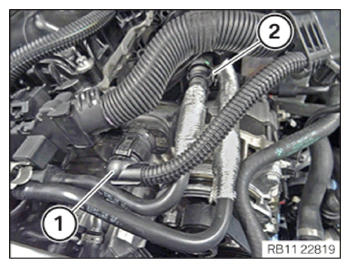

Connect and lock the tank vent line (2).
The tank vent line (2) must engage audibly.
Connect connector (1) and lock it.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

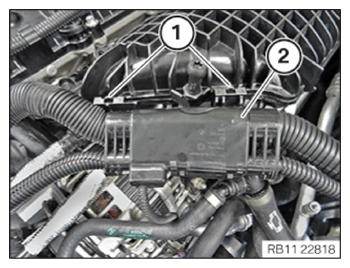

Guide in and install wiring harness section (2) for sensor system 2.
Ensure that locks (1) engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING ACOUSTIC COVER .
Refer to INSTALLING THE STRUT BRACE .
Refer to VERSION WITH ECCENTRIC SHAFT SERVOMOTOR: TEACHING IN THE END STOPS WITH THE DIAGNOSTIC SYSTEM .
