Installing the top front wishbone
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .

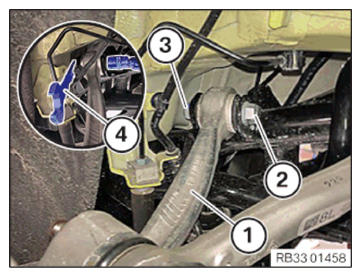

- Position the top front wishbone (1).
- Replace the screw (2) and the nut (3).
Parts: Screw, nut
- Insert the screw (2) from the rear in the rear axle support.
- Position the nut (3) and hand-tighten the screw (2). Counter support at the nut (3) with the standard tool (4).

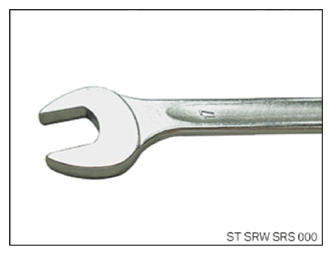

Standard tool: Open-end wrench for hexagon head Open-end wrench for hexagon
Open-end wrench for hexagon
The screw connection is tightened with the torque wrench later in the NORMAL POSITION .

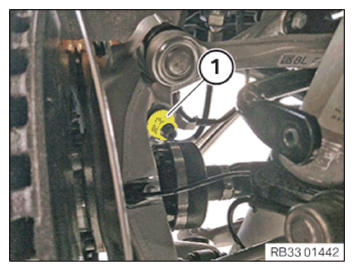

- Replace nut (1).
Parts: Nut
- Tighten the nut (1) for the top front wishbone.
TIGHTENING TORQUE SPECIFICATIONS
| Upper wishbone at front/rear to wheel carrier | ||
| M14 Replace nut. | Tightening torque | 165 Nm |
Follow-up work
- Refer to FASTENING THE ANTI-ROLL BAR LINK TO THE ANTI-ROLL BAR .
- Refer to INSTALLING THE REAR LEFT WHEEL .
- Refer to MEASURING THE RIDE HEIGHT OF REAR AXLE AND ADJUSTING THE NORMAL POSITION .
- Refer to TIGHTENING THE SCREW CONNECTION OF THE UPPER CONTROL ARM AT THE FRONT ON THE REAR AXLE SUPPORT .
- Refer to PERFORMING CHASSIS ALIGNMENT CHECK .
