Tightening the screw connection of the upper control arm at the front on the rear axle support

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

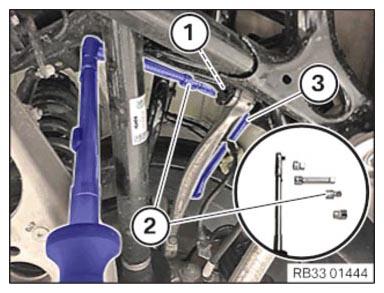

Slacken the screw (1) with the standard tool (2) by a turn and tighten it. Counter support at the nut with the standard tool (3).

Standard tool:

Pivoting extension 1/2 inch

Swivel extension 1/2 inch

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Swivel extension 1/2 inch

(2)

Open-end wrench for hexagon head

Open-end wrench for hexagon

Courtesy of BMW OF NORTH AMERICA, INC.

Open-end wrench for hexagon

(3)

TIGHTENING TORQUE SPECIFICATIONS

Upper wishbone at front/rear to rear axle support
M12 Replace screw and nut. Tighten in NORMAL POSITION .	Tightening via screw Tightening torque	100 Nm

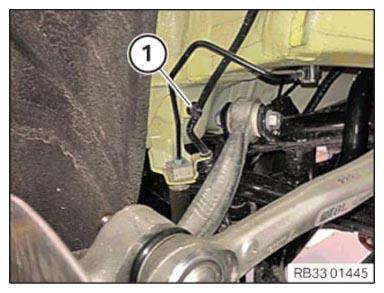

Fasten the cable (1) for the electromechanical parking brake on the holder.

Courtesy of BMW OF NORTH AMERICA, INC.
