Installing the electrical wastegate valve controller for the exhaust turbocharger of cylinders 4 to 6

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

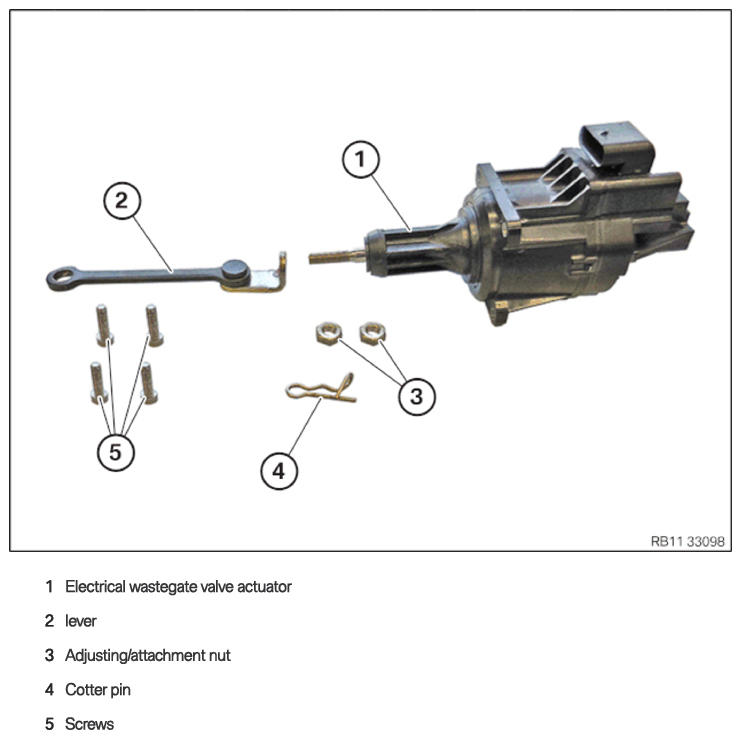

Repair kit for the electric wastegate valve controller

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Damage to the electrical controller drive and the mechanical connection .
Improper handling of the electrical controller drive can lead to malfunctions or failure of the electrical controller drive .

Do not release the screw connection between the wastegate linkage and the control rod on the wastegate valve controller and do not twist it.
Avoid exposure of lateral forces to the control rod of the electrical controller drive.
Remove all the screws on the electrical controller drive before the control rod on the wastegate linkage is detached.

Slide the control rod (1) carefully in the arrow direction up to the stop on the electrical wastegate valve controller (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

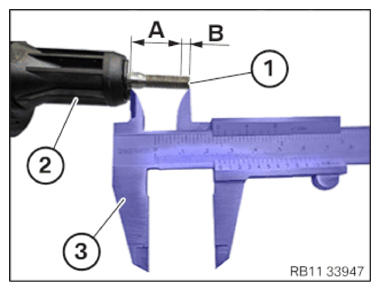

Determine the dimension (A) of the control rod (1) of the electrical wastegate valve controller (2) with a commercially available caliper gauge (3) .

Courtesy of BMW OF NORTH AMERICA, INC.
Supplement dimension (B) on the control rod (1) of the electrical wastegate valve controller (2) with a commercially available caliper gauge (3) to dimension (A) .
Dimension (B) = 3.5 mm

Courtesy of BMW OF NORTH AMERICA, INC.

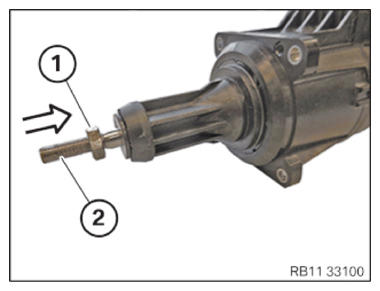

Screw on the nut (1) in the arrow direction up to the stop on the control rod (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

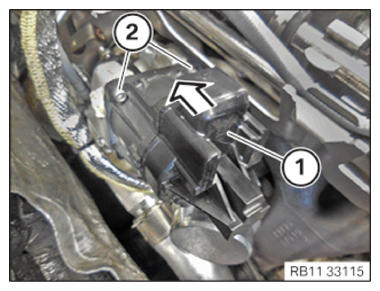

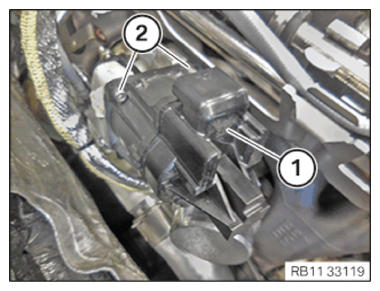

Feed in the electrical wastegate valve controller (1) in the arrow direction and install it.
Hand-tighten the screws (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and position the lever (1) carefully on the pin (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

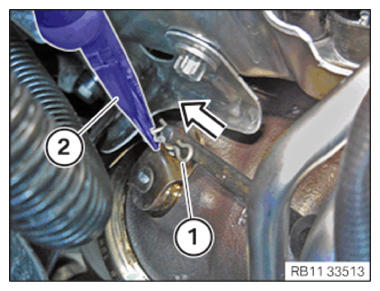

Feed in the cotter pin (1) using standard pliers (2) in the arrow direction and install it.

Courtesy of BMW OF NORTH AMERICA, INC.

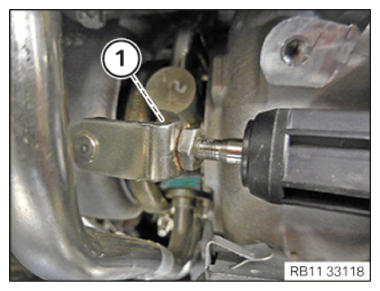

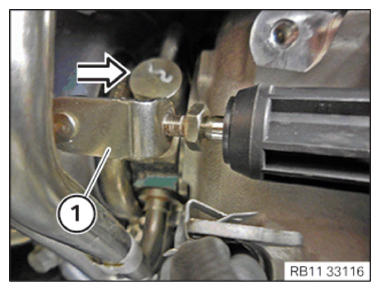

Slide in the lever (1) of the wastegate valve carefully in the arrow direction up to the stop.

Courtesy of BMW OF NORTH AMERICA, INC.

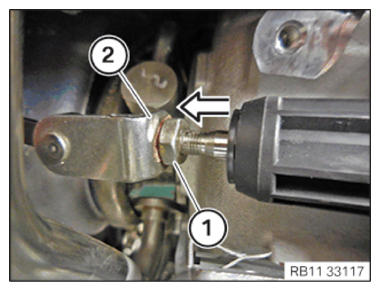

Bring the adjustment nut (1) into contact with the lever (2) in the arrow direction hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in lock nut (1) and install.
Hand-tighten the adjustment nut (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Guide out the cotter pin (1) in the arrow direction using standard pliers (2) and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the screws (2) on the electrical wastegate valve controller (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Carefully detach the control rack (1) of the electric wastegate valve actuator (3) from the pin on the lever of the wastegate valve (2) .
In this process, lateral force must not be applied to the control rod (1) .
Guide out the electrical wastegate valve controller from the bore of the compressor housing and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.

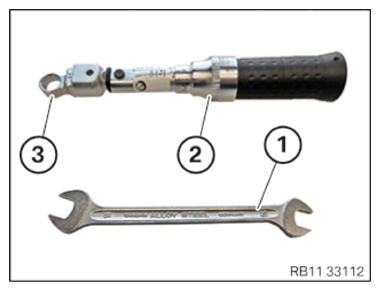

Have the following tools ready:

Number	Description
1	Open-end wrench (key range 10-11)
2	Torque wrench
3	Socket (key range 11)

Courtesy of BMW OF NORTH AMERICA, INC.

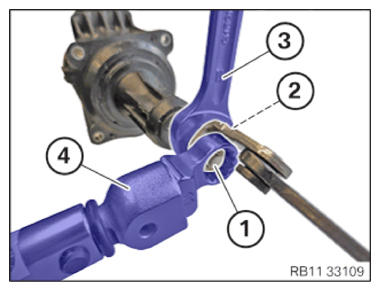

With a standard open-end wrench (3) , counter support at the adjustment nut (2) .

Tighten the attachment nut (1) with a standard torque wrench (4) .

TIGHTENING TORQUE SPECIFICATIONS

Control rod for electric wastegate valve controller
M6 Only use an open-end wrench (for counter support) to tighten the lock nut!	tightening torque	6 ± 0.3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

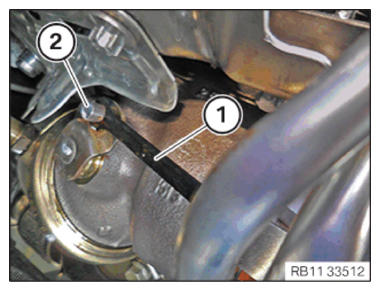

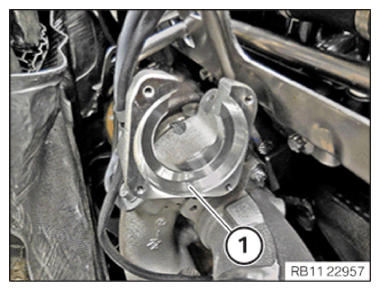

Check the contact surface (1) at the exhaust turbocharger for contamination and clean if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

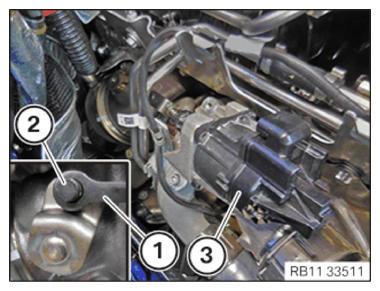

Guide the electrical wastegate valve controller (3) into the bore of the compressor housing and position it.
Carefully mount the control rod (1) of the electric wastegate valve controller (3) on the lever of the wastegate valve (2) .
In this process, lateral force must not be applied to the control rod (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Replace screws (1) .
Parts: Screws

The screws are included in the repair kit.

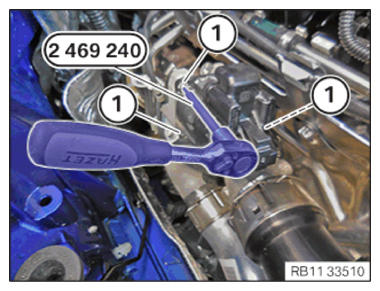

Tighten the screws (1) in a crosswise pattern using the special tool 2 469 240 .

TIGHTENING TORQUE SPECIFICATIONS

Electrical controller drive to exhaust turbocharger
M4 Replace screws. Tighten screws crosswise.	tightening torque	2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Replace cotter pin (1) .
Parts: Cotter pin

The cotter pin is included in the repair kit.

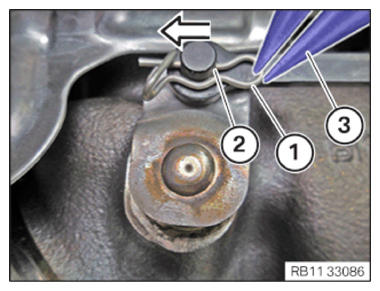

Mount the cotter pin (1) in the bore (2) using standard pliers (3) in the arrow direction .
Make sure the retaining clip engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes.
Some parts may differ in certain details.

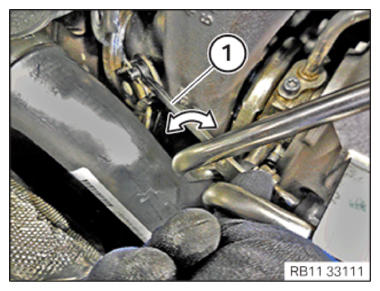

Check the ability to move of the lever (1) .
NOTE: The lever (1) must be movable in the arrow direction without applying excessive force.

Courtesy of BMW OF NORTH AMERICA, INC.

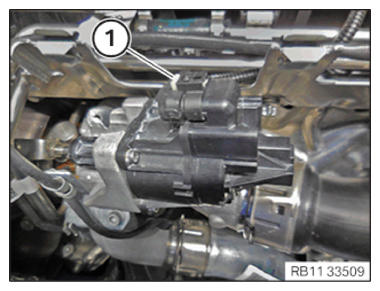

Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to PARTIALLY INSTALLING THE COOLANT EXPANSION TANK OF THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to TEACHING IN AND CHECKING END STOPS WITH THE DIAGNOSTIC SYSTEM (AFTER VEHICLE DIAGNOSIS) .
Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
Refer to INSTALLING THE FRONT-END STRUT .
Refer to INSTALLING THE STRUT BRACE .
