Removing the output shaft
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to THE INFORMATION ON THE CARBON CERAMIC BRAKE .
- Refer to REMOVING FRONT RIGHT WHEEL .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .
- Refer to LOOSENING THE OUTPUT SHAFT FROM THE WHEEL BEARING .
- Refer to RELEASING THE FRONT BRAKE CALIPER .
- Refer to REMOVING THE FRONT SPOILER .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to REMOVING THRUST FIELD .
- Refer to RELEASING THE WISHBONE FROM THE SWIVEL BEARING .
NOTE:
TECHNICAL INFORMATION
Complete the following steps with the help of a support person.
Complete the following steps with the help of a support person.
NOTE:
Description is for left component only. Procedure on the right side is identical.
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.

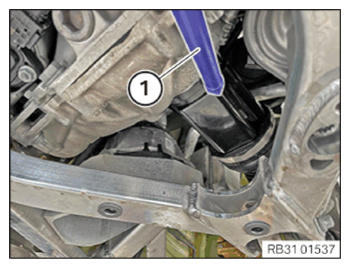

- Position the aluminum mandrel (1) on the output shaft.
- Knock out the output shaft with the aluminum mandrel (1) from the front axle differential.

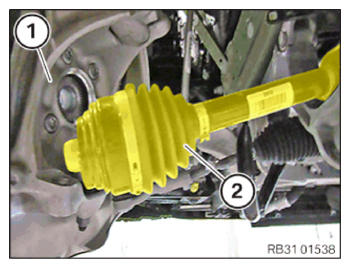

- Turn swivel bearing (1) outwards.
- Feed out and remove the output shaft (2).
