WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISE THE VEHICLE USING A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Perform wheel alignment after installation.
Perform wheel alignment after installation.
Preliminary work
- Refer to REMOVING FRONT LEFT OR RIGHT WHEEL .
- Refer to REMOVING THE FRONT SPOILER .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE FRONT BOTTOM SIDE COVER .
- Refer to REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to REMOVING THE FRONT BRAKE VENTILATION DUCT .
- Refer to REMOVING THE ADAPTER FROM THE FRONT SUBFRAME .
CAUTION:
RISK OF DAMAGE
Deflection of the ball joint of the tension strut by more than 25° .
Damage to the bellows and premature wear in the ball joint .
Deflection of the ball joint of the tension strut by more than 25° .
Damage to the bellows and premature wear in the ball joint .
- The tension strut may be angled at a maximum of 25° when installing and removing it!

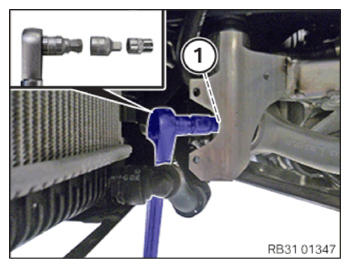

- Loosen screw (1).

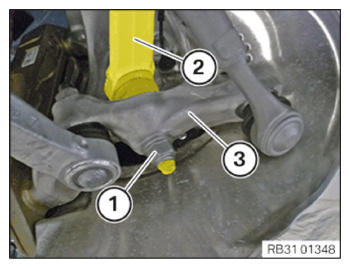

- Release nut (1). If necessary, counter support at the Torx socket.
- Release and remove tension strut (2) from swivel bearing (3).
