Removing the adapter from the front subframe
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

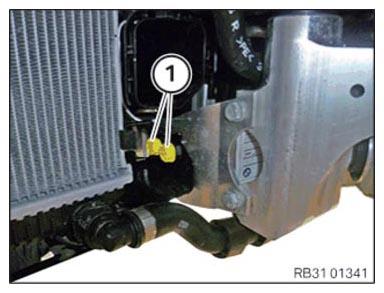

- Loosen screws (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

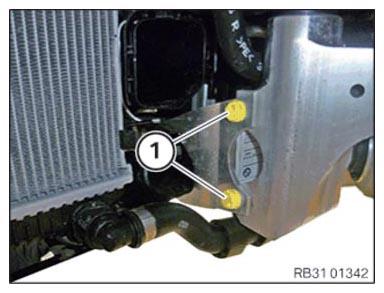

- Loosen screws (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

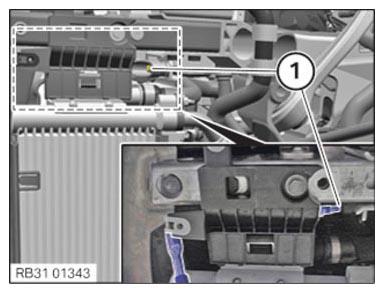

- Release screw (1) from the cooler module mount.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

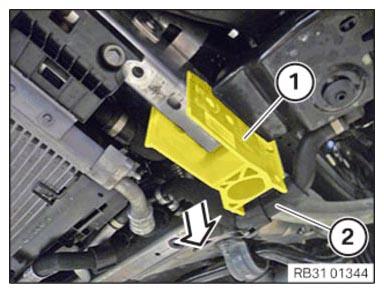

- Guide out the adapter (1) on the coolant hose (2) and remove it in the arrow direction.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
