Installing the oil-level sensor
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

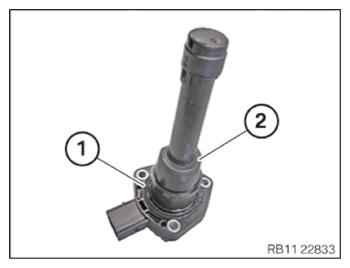

- Replace O-ring (1) on oil-level sensor (2).
Parts: O-ring
- Feed in and install the oil-level sensor (2).
- Tighten the nuts (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Oil level sensor to oil sump | ||
|---|---|---|
| hexagon nut M6 Replace nuts. |
Joining torque tightening torque |
2 Nm 8.5 Nm |
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
Follow-up work
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT SPOILER .
- Refer to REMOVING THE OIL FILLER CAP .
- Refer to TOPPING UP THE MOTOR OIL .
- Refer to INSTALLING THE OIL FILLER CAP .
- Refer to CHECKING ENGINE OIL LEVEL .
