Removing the instrument cluster (KOMBI)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Electrostatic discharge .
Damage to or destruction of electrical components .
Electrostatic discharge .
Damage to or destruction of electrical components .
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: 61 35... NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .
Preliminary work
- DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- DISCONNECTING ALL BATTERY GROUND LEADS .
- REMOVING THE SIDE PANEL ON THE LEFT DASHBOARD .
- REMOVING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
- REMOVING THE SIDE PANEL ON THE RIGHT DASHBOARD .
- REMOVING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
- REMOVING STEERING COLUMN SHROUD UPPER SECTION .

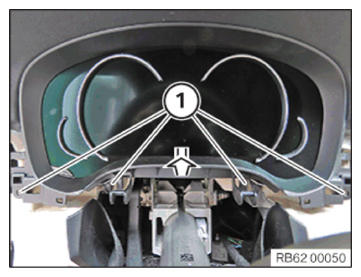

- Loosen screws (1).
- Feed out instrument cluster (KOMBI).NOTE: RISK OF DAMAGE
Damage to the instrument cluster (KOMBI) or the head unit
A ground offset can occur when releasing and connecting the cables. This can generate currents that render the instrument cluster (KOMBI) or the head unit unusable .- When releasing: First release the APIX data cable (blue).
- When connecting: Connect the APIX data cable (blue) last.
- Unlock the blue plug connection (2) and disconnect.
- Unlock plug connection (1) and disconnect.
