Installing the instrument cluster (KOMBI)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Damage to the instrument cluster (KOMBI) or the head unit
A ground offset can occur when releasing and connecting the cables. This can generate currents that render the instrument cluster (KOMBI) or the head unit unusable .
Damage to the instrument cluster (KOMBI) or the head unit
A ground offset can occur when releasing and connecting the cables. This can generate currents that render the instrument cluster (KOMBI) or the head unit unusable .
- When releasing: First release the APIX data cable (blue).
- When connecting: Connect the APIX data cable (blue) last.
- Connect the connector (1) with the instrument cluster (KOMBI) and lock it.
- Connect and lock the blue connector (2) to the instrument cluster (KOMBI).

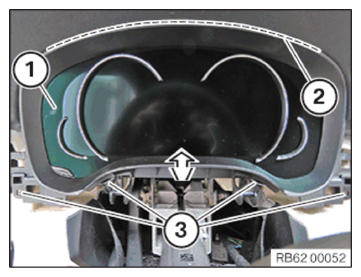

- Insert the instrument cluster (KOMBI) (1) in the marked area (2) in arrow direction.
- Tighten down screws (3).
TIGHTENING TORQUES SPECIFICATION
| Instrument cluster (KOMBI) to support | ||
|---|---|---|
| Oval-head screw | Tightening torque | 1.8 Nm |
Follow-up work
- FITTING STEERING COLUMN SHROUD UPPER SECTION .
- INSTALLING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
- INSTALLING THE SIDE PANEL ON LEFT DASHBOARD .
- INSTALLING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
- INSTALLING THE SIDE PANEL ON DASHBOARD ON THE RIGHT .
- CONNECTING BATTERY GROUND LEAD .
- ENCODING/PROGRAMING CONTROL UNIT(S) .
- ACTIVATING THE 48 V ELECTRICAL SYSTEM .
