Removing The Engine Compartment Lid Hinge, Right
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Working on 12 V electrical system.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE NOZZLE CHAIN .
- Refer to REMOVE HOOD .
- Refer to REMOVING THE GAS PRESSURE SPRING FOR HOOD .
- Refer to REMOVE LEFT AND RIGHT WIPER ARM .
- Refer to REMOVE THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVE THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVE THE COWL COVER .
- Refer to REMOVING THE ACTUATOR FROM THE HOOD HINGE ON THE RIGHT .
- Unclip the cable clip (1) and detach it off towards the side.

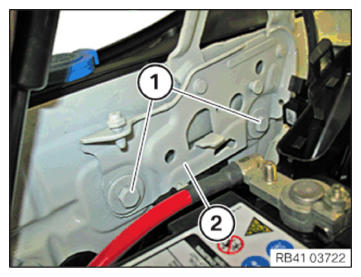

- Loosen screws (1).
- Remove the engine compartment lid hinge (2).
