Replacing Left Front Door

Preliminary work

• Refer to REMOVING THE BOTTOM COVER OF THE FRONT DOOR .
• Refer to REMOVE THE MIRROR TRIANGLE COVER .
• Refer to REMOVING THE EXTERIOR MIRROR .
• Refer to REMOVE THE COVER ON THE DOOR HANDLE .
• Refer to REMOVE FRONT DOOR TRIM PANEL .
• Refer to REMOVE FRONT INNER WINDOW CHANNEL STRIP .
• Refer to REMOVING THE COVER ON THE WINDOW FRAME .
• Refer to REMOVE THE WINDOW CHANNEL STRIP ON THE FRONT DOOR .
• Refer to REMOVE THE WINDOW FRAME TRIM FROM THE FRONT DOOR .
• Refer to REMOVE THE FRAME TRIM ON THE WINDOW FRAME OF THE FRONT DOOR .
• Refer to REMOVE THE MODULE BRACKET FROM THE FRONT DOOR .
• Refer to REMOVE THE FRONT DOOR WINDOW GLASS (MODULE BRACKET REMOVED) .
• Refer to REMOVING RUBBER WINDOW SEAL FOR THE FRONT DOOR WINDOW GLASS .
• Refer to REMOVE THE FRONT OUTSIDE DOOR HANDLE .
• Refer to REMOVING DOOR LOCK AND OUTSIDE DOOR HANDLE SUPPORT OF DRIVER'S DOOR .
• Refer to REMOVE DOOR STOP .

Precondition

New part is painted.

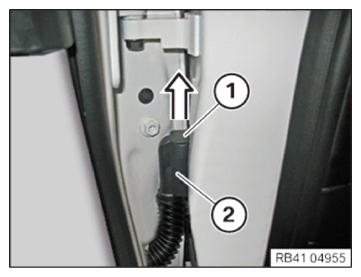

• Pull up lock (1) and disconnect plug connection (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

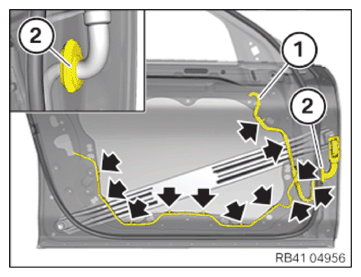

• Unclip wiring harness (1) at the marked positions.
• Loosen grommet (2).
• Guide out wiring harness (1) out of the front door.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Mechanical effects.
  Paint damage.

  • Mask those working areas at risk with yellow plastic adhesive tape.
  • Remove and install heavy or bulky components with the aid of another person/other persons.
• Secure the front door to prevent it from falling.

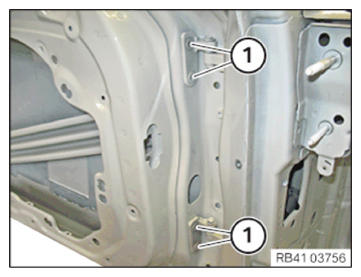

• Loosen screws (1) and remove front door.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Renew the left front door.

  Parts:  Door

• Secure the front door to prevent it from falling.
• Position the door on the door hinges.

  Tighten down screws (1).

  TIGHTENING TORQUE SPECIFICATIONS



  Front door to door hinge
  screw	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Carefully close the front door and check for bodywork contact and, if necessary, reposition the door.
• Insert the wiring harness (1) in the front door.
• Mount grommet (2) and check if it fits correctly.
• Clip in wiring harness (1) at the marked positions.

  Courtesy of BMW OF NORTH AMERICA, INC.

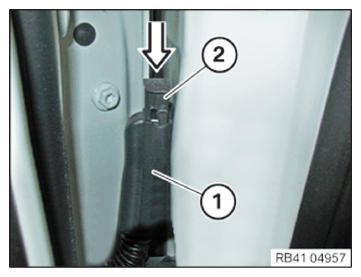

• Connect connector (1) and press down lock (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

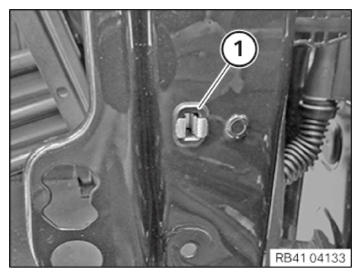

• Remount the adapter clamp (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

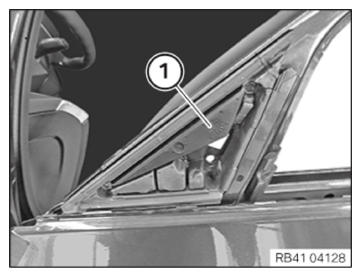

• Remount the seal (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

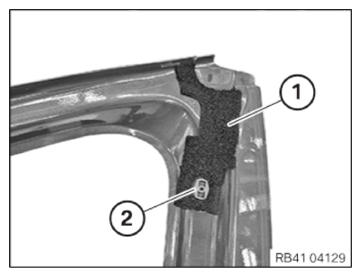

• Remount the seal (1).
• Remount the clip (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

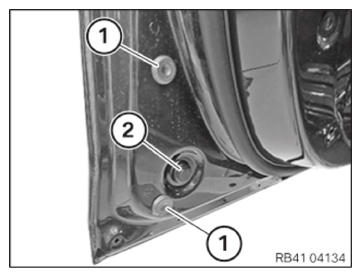

• Remount the clip (1).
• Remount the seal (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

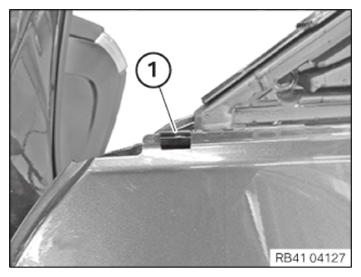

• Remount the seal (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

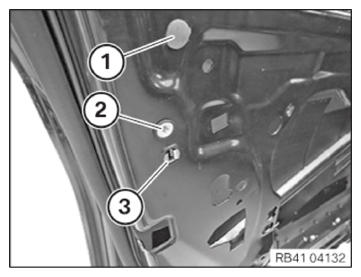

• Remount the seal plug (1).
• Remount the clip (2).
• Remount the plug-in mount (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

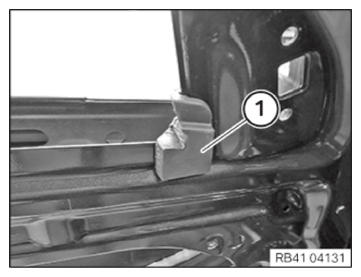

• Remount the plug-in mount (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remount the seal plug (1).
• Remount the protective cap (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

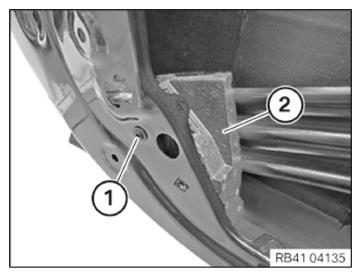

• Unscrew the screw (1) and remount the crash pad (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to BOND THE TEMPLATES FOR DOOR WEATHER STRIPS ON THE INNER DOOR PANEL .
• Refer to MOUNTING SEAL ON THE FRONT DOOR .
• Refer to INSTALLING THE DOOR STOP .
• Refer to INSTALLING DOOR LOCK AND OUTSIDE DOOR HANDLE SUPPORT OF DRIVER'S DOOR .
• Refer to INSTALL THE FRONT OUTSIDE DOOR HANDLE .
• Refer to INSTALLING THE RUBBER WINDOW SEAL FOR THE DOOR WINDOW GLASS, FRONT .
• Refer to INSTALL THE FRONT DOOR WINDOW GLASS (MODULE BRACKET REMOVED) .
• Refer to PRESERVING THE FRONT DOOR .
• Refer to INSTALLING THE MODULE BRACKET ON THE FRONT DOOR .
• Refer to INSTALL THE FRAME TRIM ON THE WINDOW FRAME OF THE FRONT DOOR .
• Refer to INSTALL THE WINDOW FRAME TRIM OF THE FRONT DOOR .
• Refer to INSTALLING THE WEATHER STRIP ON THE FRONT DOOR .
• Refer to INSTALLING THE COVER ON THE INSIDE OF THE WINDOW FRAME .
• Refer to INSTALL FRONT INNER WINDOW CHANNEL STRIP .
• Refer to INSTALL FRONT DOOR TRIM PANEL .
• Refer to ATTACH THE COVER TO THE DOOR HANDLE .
• Refer to FIT VEHICLE EXTERIOR MIRROR .
• Refer to INSTALL THE MIRROR TRIANGLE COVER .
• Refer to INSTALLING THE BOTTOM COVER OF THE FRONT DOOR .
