Preserving the front door
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

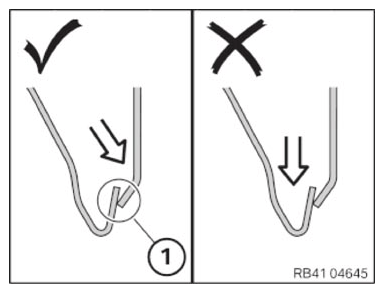

- The inner door panel is welded with the door outer skin in the area (1)
.
The weld seam must be protected against corrosion by cavity sealant.

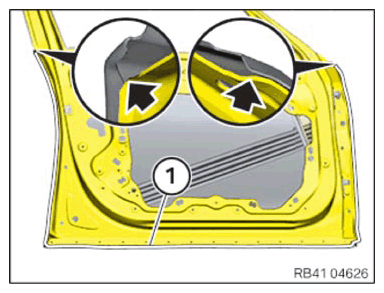

- Preserve the inner door panel in the area of the weld seam (1) .
- Apply cavity sealant up to the two marked ends.
Remove any cavity sealant which emerges.

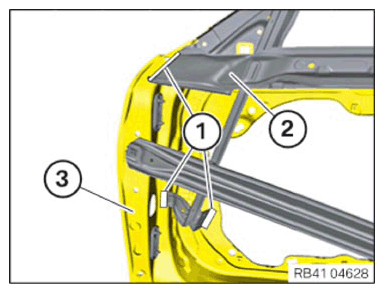

NOTE: To provide a better overview: Shown without door outer skin. - Preserve the weld seams (1)
all round between the reinforcement (2)
and inner door panel (3)

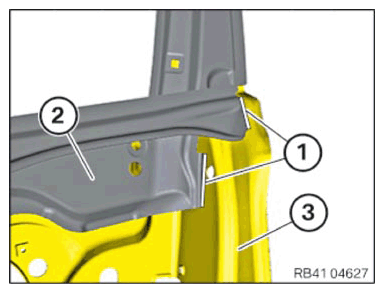

.NOTE: To provide a better overview: Shown without door outer skin.
- Preserve the weld seams (1) all round between the reinforcement (2) and inner door panel (3) .
