Preparing New Part
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: BMW/MINI BONDING INSTRUCTIONS REP-ALG-RAG1141-4105402 - V.11 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: BMW/MINI BONDING INSTRUCTIONS REP-ALG-RAG1141-4105402 - V.11 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
NOTE:
TECHNICAL INFORMATION
For additional information see: WELDING IN REINFORCEMENT PLATE (SHEET STEEL) REP-REP-RAGRP41-4105801 - V.5 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
For additional information see: WELDING IN REINFORCEMENT PLATE (SHEET STEEL) REP-REP-RAGRP41-4105801 - V.5 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
- Mark and make the separating cuts on the new part in accordance with the separating cuts on the vehicle.
- Prepare reinforcement plates at the separating cuts (bonded and welded).
- Adjust new part to fit and secure.

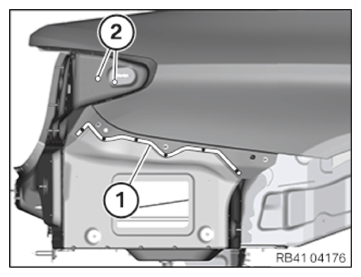

- Areas (1) and (2): Drill ø 4.2 mm holes for blind rivets.

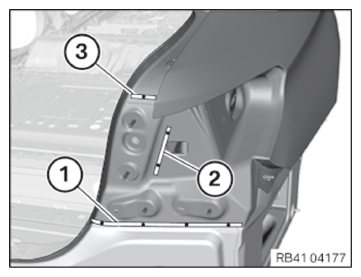

Area Number 1 6 2 2 - Areas (1) to (3): Drill ø 4.2 mm holes for blind rivets.

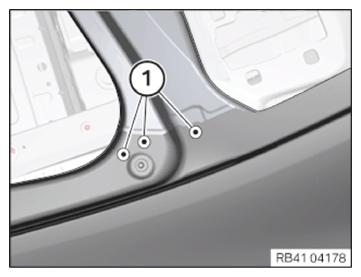

Area Number 1 4 2 2 3 1 - In areas (1), set 3 holes with diameter 4.2 mm for blind rivets.
- Remove new part and deburr bores.
- Prepare remaining areas for bonded rivet connections with punch rivets.
