Installing The Left Front Side Panel

• Open the front door.

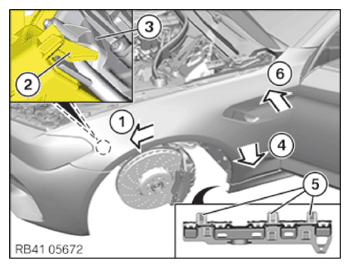

• Guide the side panel in the area of the headlight from the rear to the front on the vehicle (1). Carry out the step with a second person.
• In the process, position the guide (2) of the side panel on the headlight (3).
• Clip side panel in the area of the A-pillar downwards (4) into locks (5).
• Position side panel in the area of the A-pillar (6).
• Replace all bolts.

  Parts:  Screws

  Courtesy of BMW OF NORTH AMERICA, INC.

• Screw in all screws of the side panel until the side panel can just barely be shifted.
  NOTE: TECHNICAL INFORMATION
  The gap dimensions form the basis for these repair instructions and must be observed without fail.
  For additional information see: BODY DIMENSIONS .

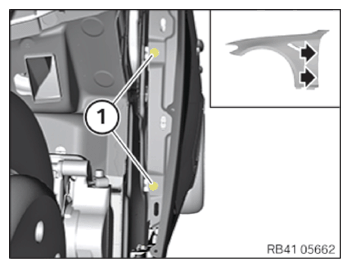

• Adjust gap dimensions.
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Side panel to bracket
  M6 screw Renew screw.	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

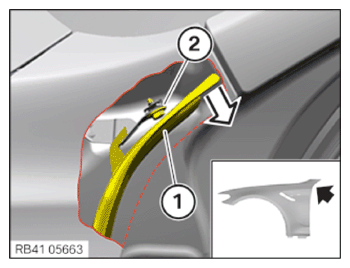

• Pull sealing (1) downwards a bit.
• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Side panel to bracket
  M6 screw Renew screw.	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Move the seal (1) into the installation position.
• Close front door.

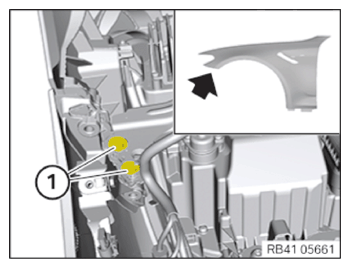

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Side panel to bracket
  M6 screw Renew screw.	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

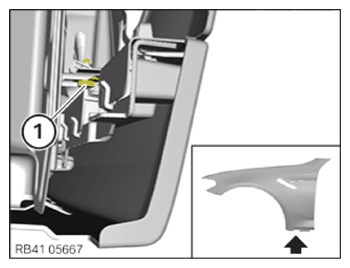

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Side panel to bracket
  M6 screw Renew screw.	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten screws (1) for the rocker panel cover (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Undershield
  screw	Tightening torque	2.6 Nm
  Plastic nut	Tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

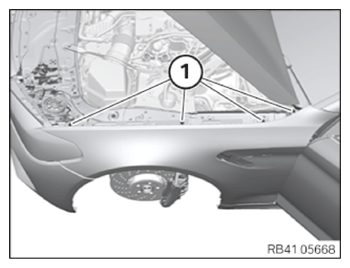

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Side panel to bracket
  M6 screw Renew screw.	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

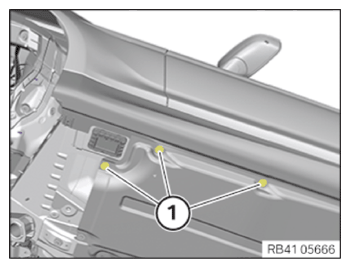

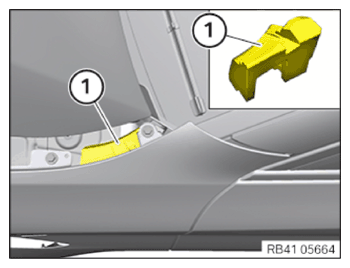

• Install the sound insulation (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the sound insulation (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove protective film (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

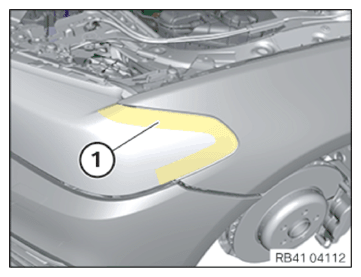

• Remove protective film (1) on headlight.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE FRONT BUMPER COVER ON THE SIDE PANEL .
• Refer to INSTALLING THE AIR DUCT ON THE SIDE PANEL .
• Refer to INSTALLING THE TRIM ON THE FRONT SIDE PANEL .
• Refer to INSTALL THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to MOUNTING THE WHEEL .
• Refer to INSTALLING THE MOUNT OF THE HOOD SEAL .
• Refer to INSTALL THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
• Refer to RESETTING THE TIRE PRESSURE MONITOR .
