Installing the front bumper cover on the side panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

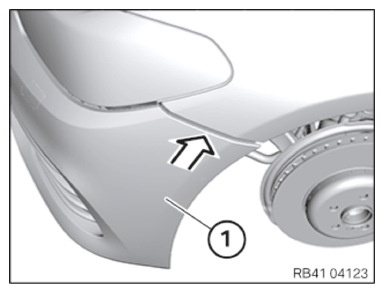

Position the bumper cover (1) at the side panel.

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten the screws (1) .

TIGHTENING TORQUES SPECIFICATION

Bumper cover on side wall
Screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
