Preparing new part
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: BMW/MINI BONDING INSTRUCTIONS REP-ALG-RAG1141-4105402 - V.11 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: BMW/MINI BONDING INSTRUCTIONS REP-ALG-RAG1141-4105402 - V.11 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
NOTE:
Perform the steps on the left and right side.

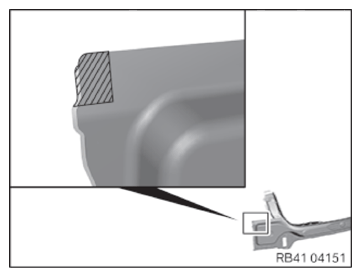

- Mark off the areas (1) according to the dimensions of 15 x 20 millimeters and disconnect.

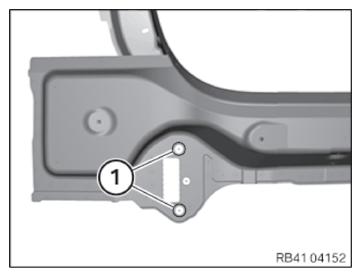

- If necessary, increase size of bores (1) by a maximum of 10 mm in diameter.

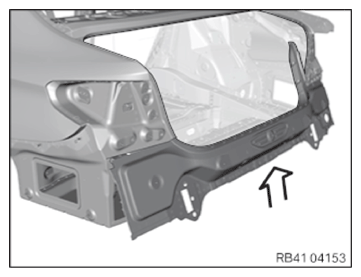

- Adjust the tail panel (1) in combination with tailgate and tail lights and secure.
- Areas (1) to (3): Set diameter of bores to 4.2 mm for blind rivet.
Area Number 1 3 2 3 3 3 4 2 5 1 - Install the support (3). Join the screw (1).
- Prepare the support (3) in the areas (2) for joining by welding.
- Prepare the new part and the vehicle in the areas (1) for joining by means of MAG weld.
- Remove new parts and deburr bores.
