Prepare New Part
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Damage to the spindle drive.
Shifting the trunk lid manually can damage the spindle drive.
Damage to the spindle drive.
Shifting the trunk lid manually can damage the spindle drive.
- Only shift trunk lid slowly hand force.
NOTE:
TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: BMW/MINI BONDING INSTRUCTIONS REP-ALG-RAG1141-4105402 - V.11 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: BMW/MINI BONDING INSTRUCTIONS REP-ALG-RAG1141-4105402 - V.11 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
NOTE:
Perform the steps on the left and right side.

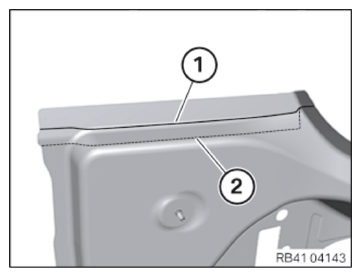

- Mark the separating cut (1) on the new part according to the separating cut on the vehicle + approx. 15 - 20 mm material allowance and cut.
(2) = Separating cut on the vehicle
- Adjust tail cowling in combination with trunk lid and rear lamps and secure.
- In the area (1) to (5), set bores Ø 4.2 mm for blind rivets.
Area Number 1 3 2 6 3 3 4 2 5 2 - Remove new part and deburr holes.
