Prepare New Part
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Mark severance cuts on new part in accordance with severance cuts on vehicle and cut.
- Remove unneeded components from the new part.NOTE: TECHNICAL INFORMATION
For additional information see: WELDING IN REINFORCEMENT PLATE (SHEET STEEL) REP-REP-RAGRP41-4105801 - V.5 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Prepare reinforcement plates at severance cuts.
- Fit in new part.NOTE: TECHNICAL INFORMATION
Structural adhesive bonding.
Observe preparation of bonding surfaces.
For additional information see: BMW/MINI BONDING INSTRUCTIONS REP-ALG-RAG1141-4105402 - V.11 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Prepare areas (1) and (2) for steel on steel structure bonding.
- Set areas (1) and (2), drill bores with Ø 6.8 mm for blind rivets.
Area Number 1 3 2 10 NOTE: TECHNICAL INFORMATION

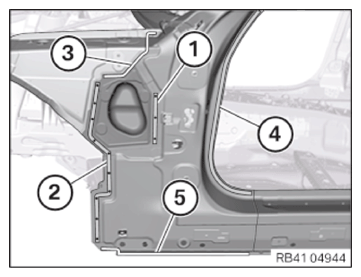

For additional information see: 41 00... Spot-weld bonding steel components - Prepare new part in areas (3) to (5) for joining by welding. In the areas (3) and (4), follow the procedure for replacing factory spot-weld adhesive joints.
- Prepare the new part in areas (1) and (2) for joining by welding. In area (2), observe the procedure for the replacement of spot-welded adhesive joints for the standard production.
- Remove new part and deburr holes.
Renew T-bolt
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Take the quantity and position from the component to be renewed.
- Renew T-bolts (1).
Parts: T-bolt
- Weld the T-bolt (1) onto the new part.
