Install The Outer Section Of The A-Pillar
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see: BMW/MINI BONDING INSTRUCTIONS REP-ALG-RAG1141-4105402 - V.11 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
Use only approved spot welder for repair.
For additional information see: BMW/MINI BONDING INSTRUCTIONS REP-ALG-RAG1141-4105402 - V.11 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .

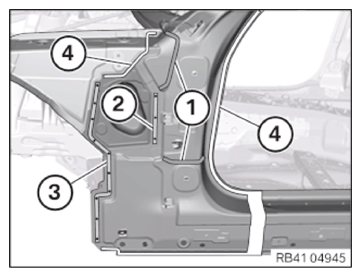

- Preclean bonded rivet areas (2) and (3) with cleaning agent R2.CONSUMABLE DESCRIPTION
Cleaning agent R2 500 ml 83190417324 - Clean bonded rivet areas (2) and (3) with cleaning agent R1.CONSUMABLE DESCRIPTION
Cleaning agent R1 100 ml, Bottle 83192211217 NOTE: TECHNICAL INFORMATION
For additional information see: INSTALLING CAVITY SEALING (EXPANDED) REP-REP-RAGRP41-4107101 - V.2 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Apply sealant D1 to the cavity sealing elements (1).CONSUMABLE DESCRIPTION
Sealant D1 (seam sealing) 310 ml 83422409985 - Apply adhesive K1 to the bonded rivet areas (2) and (3).ADHESIVE DESCRIPTION
Body adhesive K1 195 ml 83190413015 - Install the new part and the reinforcement plates.
- In the areas (2) and (3), place blind rivet N7.CONSUMABLE DESCRIPTION
Blind rivet N7
Ø 6.5 mm; clamping area 1.5 - 3.5 mm83192240352 - Weld new part in the areas (4) as per the new part preparation process.
- Weld the new part and reinforcement plate in areas (2) and (3) as per new part preparation processes. Avoid excessive heat input to the cavity sealing (1).
