Preparing New Part
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: BMW/MINI BONDING INSTRUCTIONS REP-ALG-RAG1141-4105402 - V.11 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: BMW/MINI BONDING INSTRUCTIONS REP-ALG-RAG1141-4105402 - V.11 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
- Mark new luggage compartment floor in accordance with severance cut on vehicle + 20 mm extra material and cut.

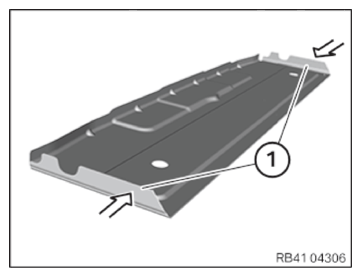

- Slightly bend the flange surfaces (1) towards the inside.

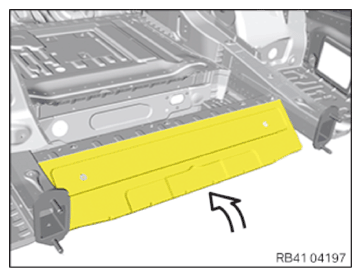

- Adjust new part in conjunction with tail panel and secure.

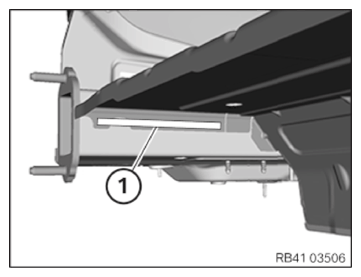

- In area (1), make 10 holes of Ø 4.2 mm for blind rivets.

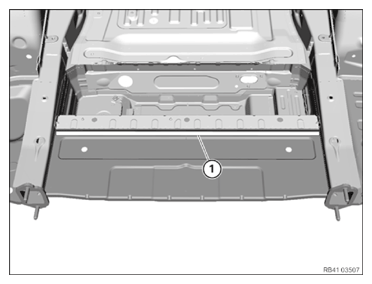

- In area (1), make 4 bores of 4.2 mm for blind rivets.
- Remove new part and deburr holes.
- Prepare bonding surfaces.
Preparing the steel surface (used part and new part) for non-structural bonding
- Do not sand the bonding surface.
- Do not sand the bonding surface down to the bare metal.
- Remove coarse contamination from the bonding surfaces using cleaning agent R2.CONSUMABLE DESCRIPTION
Cleaning agent R2 500 ml 83190417324 - Clean bonding surface with the cleaning agent R1. Adhere to the air drying time of 2 min!CONSUMABLE DESCRIPTION
Cleaning agent R1 100 ml, Bottle 83192211217
Replacing the coarse thread bolt and threaded weld bolts (steel surface)
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Renew the coarse thread bolt (1) and the threaded weld bolt (2).
Parts: Coarse thread bolt, threaded weld bolt
Take the number and position from the component to be replaced or the add-ons.
- Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.
